480x128 3.9 Inch RGB TFT LCD Module With Capacitive Touch Screen 40 Pin

Landscape 3.9 inch 480*128 TFT display, TFT LCD RGB 3.9 inch

Product Features:
1. SF-TO390YH-8960A-CT TFT LCD module is a 3.9 inch diagonal 480xRGBx128 full color bar type TFT Module..

2. This module supports RGB 24 bits Interface. it is having module dimension of 105.5x40.64x5.28 mm and Active area size of 95.04x25.34 mm;

3. SF-TO390YH-8960A-CT is integrated with ST7282A controller on module, and its logic supply voltage ranges from 2.6V to 3.3V. The module is with 500cd/m2 (nits) surface brightness, this LCD Display Module can be operating at temperatures from–20℃ to +70℃.

4. This 3.9" TFT LCD can be custom design with Resistive touch screen and capacitive touch screen.

Product Advantages:

1.The mainstream aspect ratio of the TFT LCD panel in the market is 4:3 or 16:9. But for some applications, bar type shape of display panel would be much better than the current mainstream 4:3 or 16:9 to display the required information.

2.We offer different sizes Bar Type TFT (Stretched Bar LCD Display) including sizes of 3.9 inch, 4.6 inch and 5.2 inch. In order to meet with customers requirement especially for industrial applications.

3.We develop more derivative solution from these Bar type TFT as below: 1- With screw hole on frame version option. 2- With Capacitive Touch Panel or Resistive Touch Panel option. 3- High Brightness version option.

4. Excellent display performance of background color, luminance, viewing angle, and intensity, etc.

5. Wide Temperature of Top of -20℃ to +70℃ and high quality level for industrial applications.

6. Price competitive solution with good quality among the same kinds in the LCD industry.

7. Easy to install and easy to maintain.

Applications:

This LCD module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image. SAEF Bar Type TFT-LCD displays are perfect for industrial equipment, automotive application, server system, POS system, dynamic information displays and advertising display.

Landscape 3.9 inch 480*128 TFT display, TFT LCD RGB 3.9 inch Product Drawing

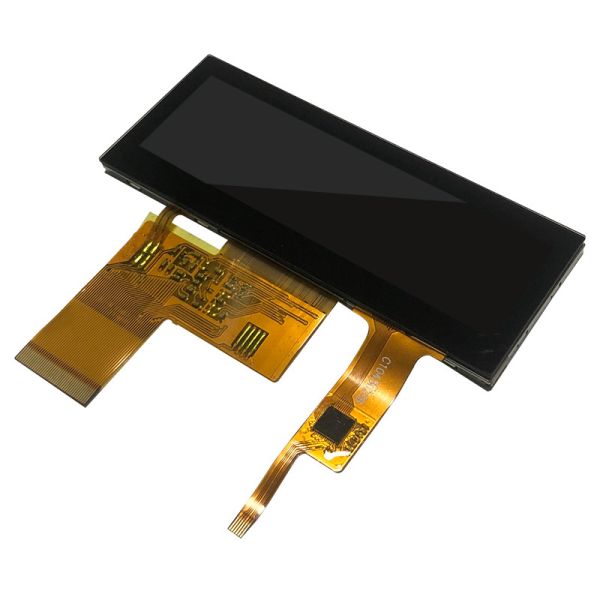

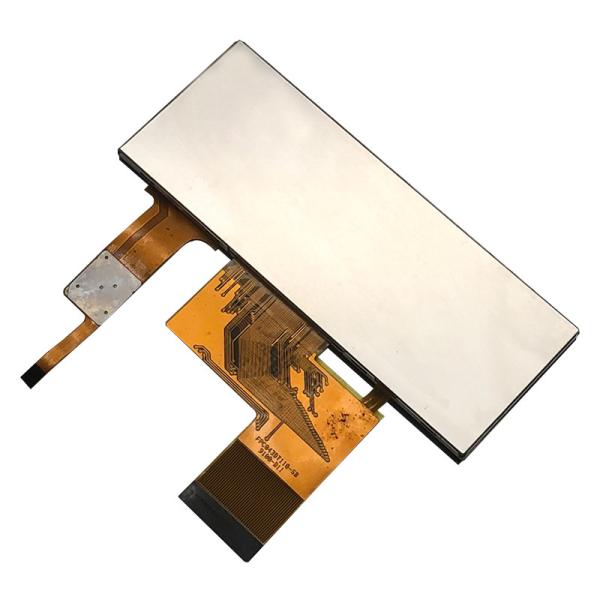

Landscape 3.9 inch 480*128 TFT display, TFT LCD RGB 3.9 inch Product Image

Input/Output Terminals

Pin1, VBL- Backlight LED Cathode

Pin2, VBL+ Backlight LED Anode.

Pin3, GND System Ground

Pin4, VCC Power supply for logic operation

Pin5~12, R0~R7 Data bus

Pin13~20, G0~G7 Data bus

Pin21~28, B0~B7 Data bus

Pin29, GND System Ground

Pin30, CLK Pixel clock signal

Pin31, DISP Display on/off control

Pin32, HSYNC Horizontal Sync signal

Pin33, VSYNC Vertical Sync signal

Pin34, DEN Data Enable Remark: internal pulled weak low

Pin35, NC No connection

Pin36, GND System Ground

Pin37, XR(NC) The right side signal of TP

Pin38, YD(NC) The down side signal of TP

Pin39, XL(NC) The left side signal of TP

Pin40, YU(NC) The up side signal of TP
