| Categories | Relay |
|---|---|
| Place of Origin: | Zhejiang, China |
| Brand Name: | Kampa |
| Model Number: | 12V 24V Relay Module |
| Theory: | Time Relay |
| Usage: | General Purpose |
| Size: | Miniature |
| Protect Feature: | Sealed |
| Contact Load: | Low Power |
| Operating Power: | DC 8-35V |
| Voltage Detection Range: | 0-99.9V ±0.1V |
| Detection Sensitivity: | 0.1-0.9s |
| Timing Range: | 0-999s |
| Contract Load: | 10A/277V AC 10A/30V DC |
| Contract Resistance: | ≤100mΩ(1A 6V DC) |
| Machanical Durability: | >10 millions |
| Electricity Durability: | >100,000 (10A-250V AC) |
| Standby Current: | 15mA/12V |
| Operating Temperature: | -40~85°C |
| Packaging Details: | Unit Type: piece Package Weight: 0.080kg (0.18lb.) Package Size: 8cm x 6cm x 3cm (3.15in x 2.36in x 1.18in) |
| Port: | Ningbo |
| Supply Ability: | 100 Piece/Pieces per Month |
| MOQ: | 100 Pieces |
| Price: | $2.30 - $4.60/Pieces |
| Company Info. |
| Yueqing Kampa Electric Co., Ltd. |
| View Contact Details |
| Product List |
12V 24V DC DIY astronomical Control digital off delay timer relay

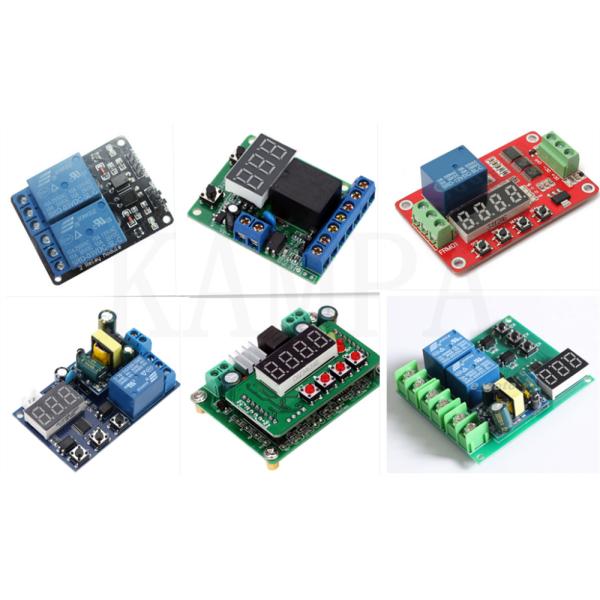

1. Pictures of timer relay
2.Description of timer relay
| Operating power | DC 8-35V |
| Voltage Detection Range | 0-99.9V±0.1V |
| Detection Sensitivity | 0.1-0.9s |
| Timing Range | 0-999s |
| Contact Load | 10VAC |
| Load voltage | 10A/277V AC 10A/30V DC |
| Contact resisrance | ≤100mΩ(1A 6V DC) |
| Machanical Durability | >10 millions |
| Electricity Durablity | ≤10ms |
| Dielectric Strength | >100,000(10A-250V AC) |
| Standby current | 15mA/12V |
| Min.Current (close the Nixie Tube) | 6mA/12V |
| Relay Pull-in current | 45mA/12V |
| Operating Temperature | -40~85°c |
| Dimension | 78 * 53 * 30mm / 3.07 * 2.08 * 1.18in |
| Weight | 74 g /2.61oZ |
A.Punctual delivery time:
We carry out your order into our well-organized production
schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is
shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary
Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
|
