| Place of Origin: | Zhejiang, China |
| Brand Name: | Kampa |
| Model Number: | JN15-24/31.5KA-210 |
| Product name: | JN15-24-31.5KA-210 High Voltage Earthing Switch |
| Type: | Earthing Switch |
| Rated voltage: | 24KV |
| Rated short-time withstand current:: | 31.5kA |
| Short time continue time: | 4s |
| Lighting impulsive withstand voltage: | 125kV |
| Short time power frequcey voltage: | 65kV |
| Certification: | ISO9001 |
| Max. Voltage: | 24KV |
| Packaging Details: | Normal package,one pcs one cartoon. |
| Port: | Ningbo |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Price: | $230.00 - $250.00/Sets |
| Company Info. |
| Yueqing Kampa Electric Co., Ltd. |
| View Contact Details |
| Product List |

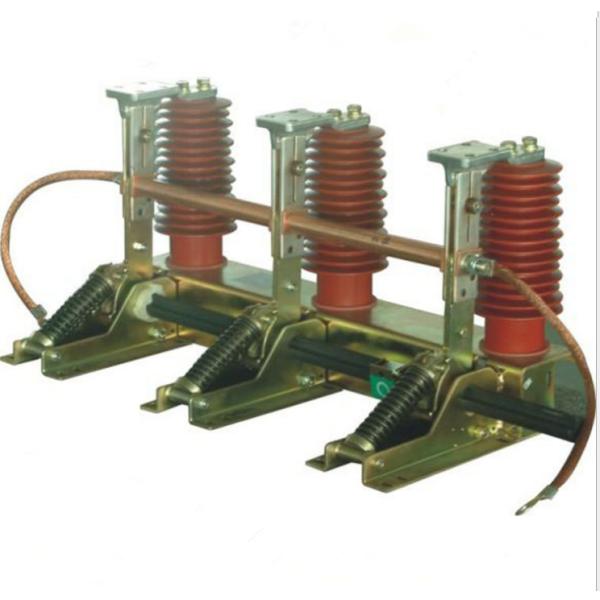

High Voltage Earthing Switch Kampa JN15-24-31.5KA-210 High Quality
1.Used in indoor switchgear for the earthing protection.
2.Three phase earthing switch with phase pole distance of 210mm or 275mm, it is suitable 800mm MV indoor metal clad switchgear and 1000mm MV indoor indoor metal clad switchgear.
Operation environment
1.Altitude No more than 1000m
2.Surrounding temperature between -10°C to +40°C
3.Working situation no conductivity dust
4.No corrosive gas of effect insulation and destroy metal.
5.Without violent vibration and striking.
6.Have no explosive danger and fire
Specification
Item | Unit | Data | ||
Rated voltage | kV | 24 | ||
Rated short-time withstand current | kA | 31.5 | ||
Rated short-circuit duration | s | 4 | ||
Rated short-circuit making current | kA | 80 | ||
Rated peak withstand current | kA | 80 | ||
Rated insulation level | PF withstand voltage (1 min) | kV | Phase to earthPhase to phase | 65 |
Lightning impulse withstand voltage | 125 | |||
Mechanical endurance | Time | 2000 | ||
Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such as Circuit Breaker,Relay,Switch,Contactor and so on. We are manufacturer and have ten years experience in Electrical industry. |
