| Categories | LSA Plus Module |
|---|---|
| Brand Name: | JINWO |
| Model Number: | JW-TM-105A |
| Certification: | ROHS |
| Place of Origin: | NINGBO,CHINA |
| MOQ: | 1000 |
| Price: | negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000pcs each month |
| Delivery Time: | 8work days |
| Packaging Details: | 10pcs/polybag,then inner box |
| Material: | ABS Or PBT |
| Color: | White And Light Grey |
| Type: | 8Pairs |
| Contact Pin: | Silver-plated Phosphor Bronze |
| Application: | Telecommunication |
| Protection Level: | UL-94VO |
| High Light: | Krone connection module, krone disconnection module |

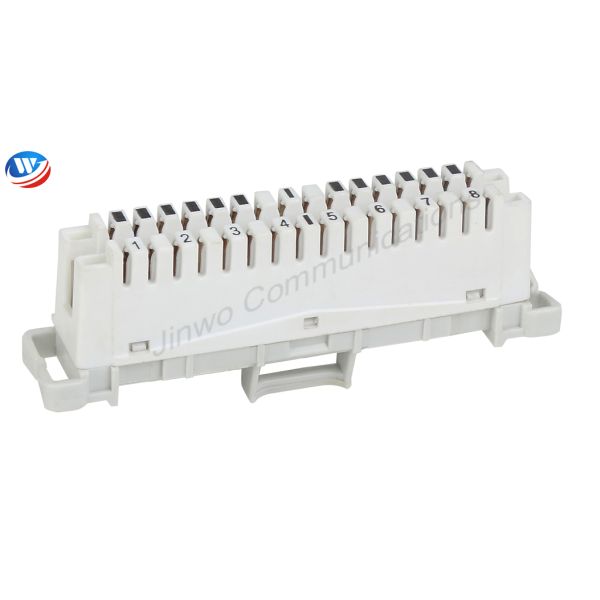

For Telecom ABS / PBT Silver Coated Krone LSA Module 8 Pairs Krone Disconnection Module
Quick Detail:
1. Material: PBT or ABS(UL94V-0)
2. Contact: Phosphor Bronze
3. Silver Plating: 0.5 um1.25 um5 um
4. Can be installed on krone type stainless steel back mount frames
5. Available with 50pair block tag and 100pair block tag.
6. for mounting on MDF,racks,profile bracket,indoor and outdoor distribution box,cross connection cabinets.
Applications:
High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.
Specifications :
| Mechanical Performance | Insertion force : 40~75N |
| Pull Out Force : F≥25N(axial) F≥7.5N(radial) | |
| IDC Life : 200 times(20-26 AWG Solid wire) minimum | |
| Copper Conductor Diameter: Φ0.4~Φ0.8(mm) | |
| Environment Characteristic | Storage Tempreture: 40 to 70°C |
| Operating Temperature : 10 to 60°C | |
| Relative Humidity: 95%, noncondition | |
| Electrical Performance | Insulation resistance: 1000 Mohms minimum |
| Contact resistance :7 mohms maximum | |
Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s |
|
