Wire Winder Semi Automatic Transformer Coil Winder 40rpm

Factory Direct Sales Wire Winder Semi Automatic Transformer Coil Winding Machine

General information of transformer coil winding machine GDY-3T

Semi automatic transformer coil winding machine GDY-3T is one kind of simple and practical coil winding machine. The kind of transformer coil winding machine which is mainly used to wind transformer coil or other similar products. The transformer coil winding machine is provided with a 7.5kw motor to drive the winding shaft, which provides an enough pulling force to wind big coil. It is very easy to operate the transformer coil winding machine, setting the total number of turns and pressing the foot pedal, the machine will wind and stop when finishing winding the set turns.

Main components of transformer coil winding machine GDY-3T

• Main frame
• Square shaft
• Split tailstock
• Foot pedal
• Counter
• Control board

Main parameters of transformer coil winding machine GDY-3T

Typical standard specifications of transformer coil winding machine GDY-3T are shown below, however, the coil winding machine can also be manufactured as requested.

Fig 1: Transformer coil winding machine GDY-3T's full view

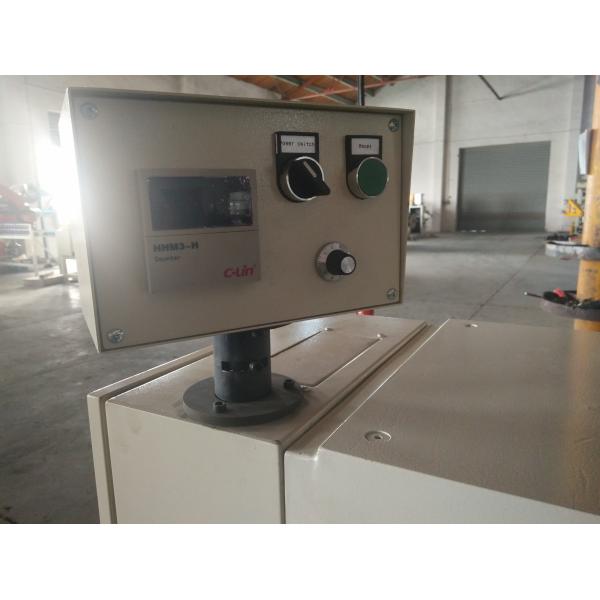

Fig 2: Transformer coil winding machine GDY-3T's control panel
