Applicable Industries: | Building Material Shops, Food & Beverage Factory, Food Shop |
Showroom Location: | None |
Condition: | New |
Product Type: | Max Jumbo Roll Slitting Machine |
Processing Type: | Paper Slitting and Rewinding Machine |
Place of Origin: | Fujian, China |
Brand Name: | JORI |
Voltage: | 380V |
Power: | 15KW |
Dimension(L*W*H): | 9500X4000X2300mm |
Weight: | 6000 kg, 3.0T |
Warranty: | 1 Year |
Production Capacity: | 200-300m /min |
Machinery Test Report: | Not Available |
Video outgoing-inspection: | Provided |
Marketing Type: | Ordinary Product |
Warranty of core components: | 1 Year |
Core Components: | PLC, Other |
After-sales Service Provided: | Engineers available to service machinery overseas |
Maximum material diameter: | 1100mm |
Production Speed: | 180-200m /min |
Maximum material width: | 1750mm |
Equipment power: | 4kw |
Maximum rewinding diameter: | 300mm |
Dimensions: | 6200*2600*1800mm |
Machine type: | Automatic |
Machine for: | Jumbo roll slitting |
Packaging Details: | Wooden Cases, Seaworthy Package.
Maxi Jumbo Roll Slitting & Rewinding Toilet Paper Machine |
Port: | xiamen port,China |
Supply Ability: | 40 Unit/Units per Month Maxi Jumbo Roll Slitting & Rewinding Toilet Paper Machine |
Price: | $30,000.00/Units 1-1 Units |
Company Info. |
Dalian Jori Co., Ltd. |
View Contact Details |
Product List |

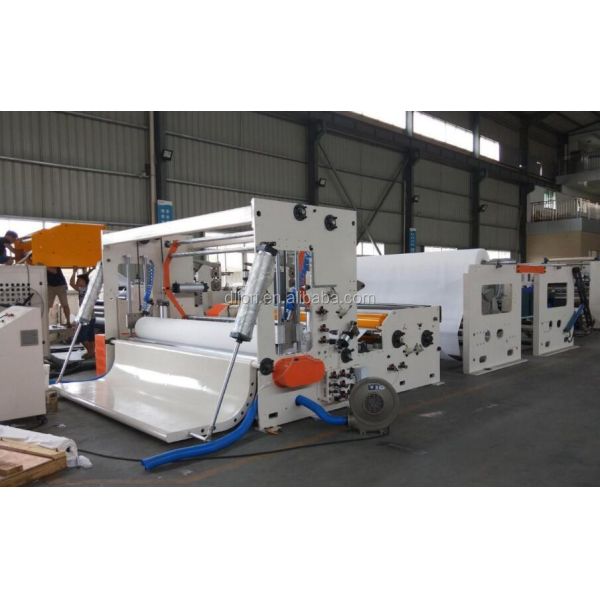

Customized Jumbo Roll Slitting Cutting Machine
High speed full automatic jumbo roll slitting and rewinding machine
is the raw material at high speed slitting system, from single ply
can be slit and rewinded into two, three or four ply paper with
various widths, for the production of napkin, hankies, facial or
sanitary napkins. The machine is featured of good performance,
compact structure, and stable running, and easy operation. The
finished products have good winding profiles, which make it a good
equipment for the paper mills and textile factories, and a high
reputation from the customers.
Main function and feature:
1.Adopt the widen belt on back-stand to increase the friction when
feeding paper.
2.Synchronous belt transmission, make it stable-running and less
noise even though at high speed operation.
3.Equipped with newly fasten unit, making it is convenient to
adjust the raw material.
4.With the function of pneumatic paper loading, edge vacuum
suction.
5.Automatic finished roll discharging, Solve the deformation caused
by falls paper phenomenon, save the labor force. (Optional)
6.Easy operation, the finished products have good winding profiles
and clean cutter.
Technical parameters:
Model | QPZ3000 |
Raw material width | 3000mm |
Raw material diameter | 2000mm |
Speed | 200-300m/min |
Finished products diameter | ≦1200mm |
Slitting width | ≧200mm |
Finished products core diameter | 76.2mm |
Unwinding unit | 2layer(Can be appointed) |
Base paper core shaft | Air-shaft |
Rewinding System | Pneumatic timing rewinder |
Slitting System | Automatic slitting control |
Discharging Unit | Automatic discharging |
![]() |
