SPST Standard Slide Type Smd Rotary Dip Switch

Categories -DIP Switch.Tact & ZIF Socket
Brand Name: StarPey
Model Number: DIPS10-DS-06
Certification: Rohs,UL
Place of Origin: Guangdong,China
MOQ: 1000 pcs
Price: 1
Payment Terms: Western Union, MoneyGram, L/C
Supply Ability: 1250000 pcs per moth
Delivery Time: 15-25 work days
Packaging Details: Tube
material: PBT
Switch voltage: 50V
Switch currtenly: 0.3A
OEM/ODM: YES
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SPST Standard Slide Type Smd Rotary Dip Switch

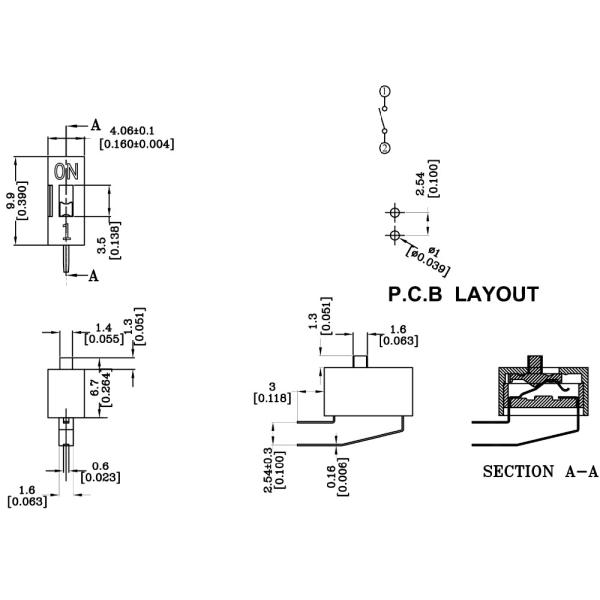

Specification & Drawing
Name
Cabriole leg Switch DIP Switch Piano Push Switch
Model
DIPS10-DS-06
Rating
DC 50V 0.3A
Contact resistance
50mΩ MAX
Insulation resistance
100MΩ MIN
peration force
200gf MAX
Total travel
0.25±0.10mm
Operation life
10,000 cycles
Function
momentary
Terminal form
SMT
Solder ability
245±5℃for2±0.5s
Operation temperature
-20℃ + 70℃
Storage temperature
-30℃ + 80℃
Material & Color
ACTUATOR
THERMOPLASTIC PBT UL 94V-0
COVER
THERMOPLASTIC PBT UL 94V-0
CONTACT
PHOSPHOR BRONZE
TERMINAL
BRONZE
BASE
THERMOPLASTIC PBT UL 94V-0
