| Categories | 1MP Camera Module |
|---|---|
| Brand Name: | Sinoseen |
| Model Number: | SNS-1MP-H62-M1 |
| Certification: | RoHS |
| Place of Origin: | Shenzhen,China |
| MOQ: | 200 |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
| Delivery Time: | 2-3weeks |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Type: | MIPI camera module |
| Sensor: | 1/4" SOI JX-H62 |
| Resolution: | 1MP (1280*720) |
| Dimensions: | customizable |
| Lens FOV: | 78°(optional) |
| Focus Type: | Fixed focus |
| Interface: | MIPI |
| Feature: | HD |
| Company Info. |
| Shenzhen Sinoseen Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

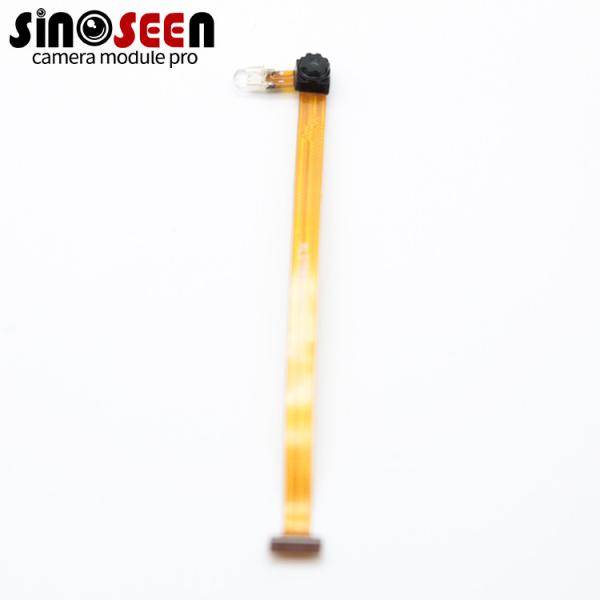

Flexible Ribbon Board 1MP Camera Module MIPI Interface Fixed Focus
Flexible Ribbon Board MIPI Interface 1MP Fixed Focus HD Camera Module
Camera Module MIPI
This is a 1MP MIPI camera module with sensor JX-H62,JX-H62 is an HD CMOS image sensor designed with a superior 3.0µm pixel with excellent low-light sensitivity and low dark current performance. It features a 30fps native high definition (HD ) 720p video capability for camera applications in PC multimedia, security, and entertainment devices.
The JX-H62 consists of a 1296x732 active pixel sensor (APS) array with an on-chip 10-bit ADC, programmable gain control (PGA), and correlated double sampling (CDS) to significantly reduce fixed pattern noise (FPN). The sensor also has many standard programmable and automatic functions. It has both the industry compliant DVP parallel and MIPI CSI2 serial interfaces. The external host controller can access this device through a standard serial interface.
Specification
Model No | SNS-1MP-H62-M1 |
Sensor | 1/4’’ SOI JX-H2 |
Pixel | 1 Mega Pixel |
Most effective pixels | 1280(H) x 720(V) |
Pixel Size | 3.0µm x 3.0µm |
Min illumination | 0.05 LUX |
Compression format | MJPG / YUY2 |
Resolution & Frame rate | 30FPS |
Shutter Type | Electronic rolling shutter |
Focus type | Fixed focus |
S/N ratio | TBDdB |
Dynamic range | TBDdB |
Sensitivity | TBDmV / lux-sec |
Interface type | MIPI |
Lens FOV | 78° |
Dimension | Customizable |
Storage temperature | -30°C to 85°C |
Operating temperature | 0°C to 60°C |
USB cable length | Default |
Support OS | WinXP/Vista/Win7/Win8/Win10 |
