E-Mark Network Switch 6 Port Unmanaged Industrial Din Rail Megabit Based

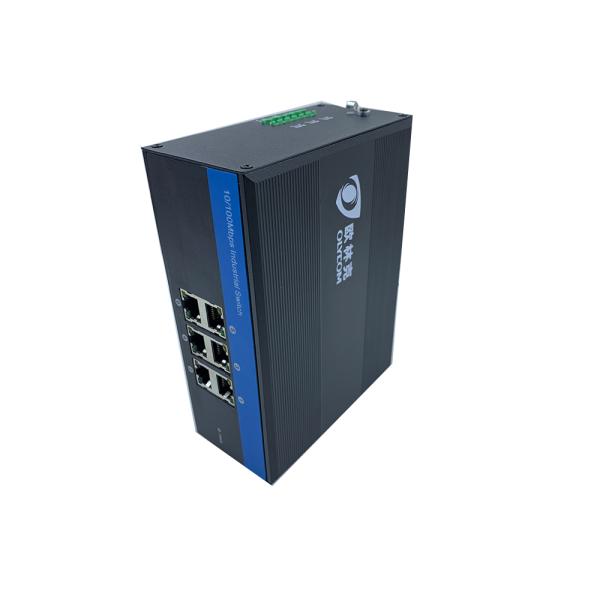

6 Port Unmanaged Industrial Ethernet Switch

Introduction to E-mark Ethernet Switch

Olycom 6 Port Unmanaged Ethernet Switch is the 10/100 Mbps industrial switch with below features

1. 6 x 10/100Mbps Auto-sensing RJ45 ports
2. 6KV Ethernet surge protection, adapt to a harsh outdoor environment
3. Support Auto MDI/MDIX
4. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
5. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
6. A store-and-forward switching mechanism
7. Operating temperature:-40 ° ~75 ° c
8. Storage temperature: -40°～ 85°C
9. Input voltage: DC 12-52V

The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Specification of Industrial Network Switch

Application of Vehicle LAN Switch

FAQ

1, What chip is it based?

Olycom: Realtek

2, Can I customize it?

Olycom: Yes. We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)

3. What is the packing list?

A: There is a device, protective foam, a user manual and a warranty card in the box.

4. How can I get a sample unit for testing?

A: We have many Amazon stores. Please search our brand Olycom or the model names if you know.

You are also welcome to talk with us for a standard purchase.

5. Is it an option to just have PCBs from us?

A: Yes, as a source factory, we have many PCBs in stock, it is fine to supply boards with enclosure.
