CW101C C17200 XHM TM06 Beryllium Copper Foil Strips Mill Hardened Copper Strip

Beryllium Copper Foil Strips CW101C (C17200) XHM State TM06 Mill Hardened Copper Strip

Product Normal Description:

Product Name: Beryllium copper foil strips

Grade: CW101C (C17200)

Standard: ASTM B194, SAE J463, J461

Product Specification: 0.1mmx250mm

State: XHM (TM06)

Typical Application: used for springs

Product Brand: CUBERYLLIUM®

CUBERYLLIUM ®-172 also named Cube2--UNS. C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.

Chemical Composition of Beryllium Copper CW101C (C17200) Alloy (CUBERYLLIUM ®-172):

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.

Typical Physical Properties of Beryllium Copper CW101C (C17200) Alloy(CUBERYLLIUM ®-172):

Temper Designations of Beryllium Copper Strips CW101C (C17200) (CUBERYLLIUM ®-172):

The Magor Applications of Beryllium Copper CW101C (C17200) (CUBERYLLIUM ®-172):

• Resistance welding
• Plastic injection mold tooling
• Oil and gas
• Aerospace
• Electronics and telecommunications
• Electrical / electronic connectors
• Robotics
• Foundry products
• Current-carrying springs
• Welding electrodes
• Bearings
• Plastic molds
• Corrosion resistant components
• Precision screw machined parts

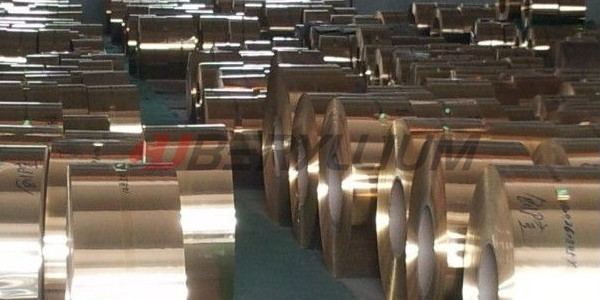

Product Photos:

FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.

Cuberyllium Metal Technology Co.,Ltd., is a national-level high-tech company. It is a production-oriented enterprise mainly engaged in the production of high-performance beryllium copper materials.

CUBERYLLIUM^® established in 2002 years and located in Zhejiang Prov., China. It is a member of “CUBERYLLIUM^®” Group which was founded in 1998 with a long experience of Beryllium Copper Alloy.

At present, “CUBERYLLIUM^®” Group has developed into three production bases in Zhejiang, Jiangsu and Shanxi, covering more than 30000 square meters with more than 120 employees.

"CUBERYLLIUM^®" Group is a professional manufacturer which based on production and development of beryllium copper alloy, with well equipped testing facilities and strong technical force, good quality and reasonable price.

CUBERYLLIUM^®'s beryllium copper has high conductivity, high strength, wear resistance, fatigue resistance, corrosion resistance and other characteristics, widely used in aerospace, communications, welding, chemical petroleum and medical fields.
