ARC Function 18Gbps 8x8 HDMI Matrix Switcher With Metal Enclosure
18Gbps 8x8 HDMI Matrix with ARC Function
1. Introduction
HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output. Each HDMI output of this 8x8 HDMI Matrix supports 4K2K to 1080P downscaler independently. Control is via front panel buttons, IR remote,RS-232, LAN and Web GUI.
2. Features
1. HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
2. Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
3. Support 18Gbps video bandwidth
4. Dolby Vision, HDR10+ and HLG are supported.
5. Support 4K->1080P Down Scaler for each output port
3.Package Contents
① 1 x 18Gbps 8 x 8 HDMI Matrix
② 1 x 12V/5A Power Adapter
③ 1 x IR Remote
④ 1 x IR Receiver cable (1.5 meters)
⑤ 1 x RS-232 serial cable (1.5 meters, male to female head)
⑥ 2 x Mounting Ear
⑦ 1 x User Manual
4. Specifications
Technical | |||
HDMI Compliance | HDMI 2.0b | ||
HDCP Compliance | HDCP 2.2 and HDCP 1.4 | ||
Video Bandwidth | 18Gbps | ||
Video Resolution | Up to 4K2K@50/60Hz (4:4:4) | ||
Color Space | RGB, YCbCr 4:4:4/4:2:2/4:2:0 | ||
Color Depth | 8-bit, 10-bit, 12-bit | ||
HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X | ||
Coax Audio Formats | LPCM 2.0, Dolby Digital / Plus, DTS 5.1 | ||
L/R Audio Formats | PCM2.0 | ||
HDR formats | HDR10,HDR10+,Dolby Vision, HLG | ||
ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) | ||
Connection | |||
Input Ports | 8×HDMI Type A [19-pin female] 1×IR EXT [3.5mm Stereo Mini-jack] | ||
Output Ports | 8×HDMI Type A [19-pin female] 8×Coax Audio (RCA) 8×L/R Audio [3.5mm Stereo Mini-jack] | ||
Control Ports | 1×TCP/IP [RJ45] 1×RS-232 [D-Sub 9] | ||
Mechanical | |||
Housing | Metal Enclosure | ||
Color | Black | ||
Dimensions | 440mm (W)×200mm (D)×44.5mm (H) | ||
Weight | 2.8kg | ||
Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 12V/5A (US/EU standard, CE/FCC/UL certified) | ||
Power Consumption | 43W | ||
Operating Temperature | -10°C ~ 45°C / 14°F ~ 113°F | ||
Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | ||
Relative Humidity | 20~90% RH (non-condensing) | ||
Resolution / Cable length | 4K60 - Feet / Meters | 4K30 - Feet / Meters | 1080P60 - Feet / Meters |
HDMI IN / OUT | 16ft / 5M | 32ft / 10M | 50ft / 15M |
The use of “Premium High Speed HDMI” cable is highly recommended. | |||

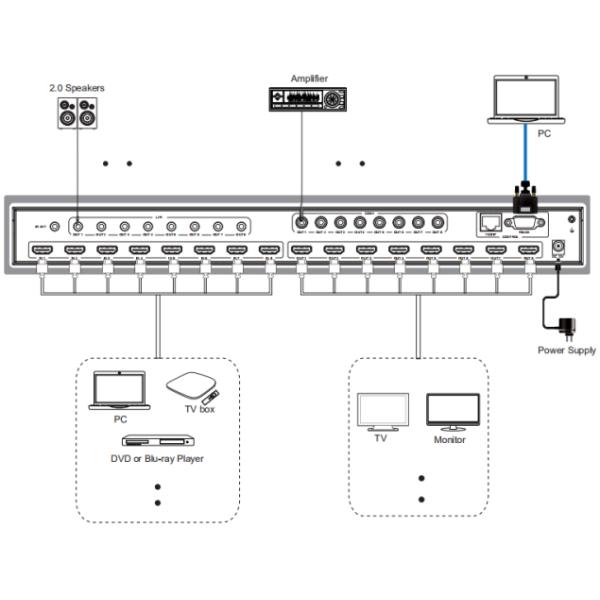

5. Application Example
|
