| Categories | API Tube Mill |
|---|---|
| Brand Name: | ZTZG |
| Model Number: | ERW165 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 Set/Sets per Year |
| Delivery Time: | 120 days |
| Packaging Details: | Seaworthy packing |
| Item: | API tube mill |
| Raw Material: | API, Carbon steel, black steel, stainless steel, Cold roll, ow-carbon Steel,HR carbon steel,Q235,S235 |
| Prodution Capability: | 20-120m/min |
| Applicable Industri: | oil, gas transport |
| Welding type: | Solid-state high frequency welding |
| After Warranty Serve: | Video technical support, Online support, Spare parts |
| Local Service Location: | Egypt, Turkey, Philippines, Brazil, Peru, Saudi Arabia, Mexico, Russia |
| Marketing Type: | New Product 2020 |
| Warranty of core part: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Un-coiler, Hydraulic shear |
| Condition: | New |
| Type: | Pipe Production Line |
| Production Capacity: | 98% |
| Voltage: | 380-480V |
| Cutting type: | Flying cold saw |
| Decoiler Type: | Hydraulic |
| SIZE: | Can be customized |
| Port: | Tianjin |
| Technical: | ZTF and directly forming square, multifunction |
| Production length: | 4-12m |
Professional Manufacturer Roll Forming For API 5l Casing API Making Machine
API pipe mill is specialized for manufacturing straight welded pipe for petroleum and gas pipelines. Taking hot-rolled steel as raw material, it produces required pipes through cold roll forming and suitable welding methods like H.F. welding, submerged arc welding, and so on. The whole production line adopts ‘ZTF’ forming technology.
Materials: L245,L360,A53,J55,N80 ,X42,X46,X52,X56,X60,X65,X70
Basic Technical Information of Welded Pipe Production Line
| Product&yield | Round Pipe | 76mm-165mm Thickness:2.0mm-6.0mm |
| Square & rectangle tube | 60mm×60mm -130mm×130mm Thickness:2.0mm-5.0mm | |
| Length | 6m-12m Length Tolerance: ±3mm | |
| Production Speed | 20-50 m/min | |
| Production capacity | 30,000ton/year | |
| Consumption | Mill installed capacity | 220 kw |
| Line Area | 85m(length) ×7m (width) | |
| worker | 6-8 workers | |
| Raw Material | Carbon Steel coil | Carbon steel coil Q235B(ASTM GR·D,σs 230) |
| Width | 240mm-520mm Thickness: 2.0mm-6.0mm | |
| Coil ID | 580-700mm | |
| Coil OD | Max 1800mm | |
| Coil Weight | 6.0t |
Advantage
√ Apply to high strength steel and big thickness
√ Raw material can be steel coil and single plate
√ ZTF forming process save roller up to 60%
√ Electric control and automatic adjustment, high precision, high roller change speed
Application
Widely used as the architectural structure tubes, low-pressure liquid tubes, coal transmission belt tubes, driveshaft tubes, guardrail tubes, tower footing tubes, automobile beam steel tubes, and other products.
Process Flow

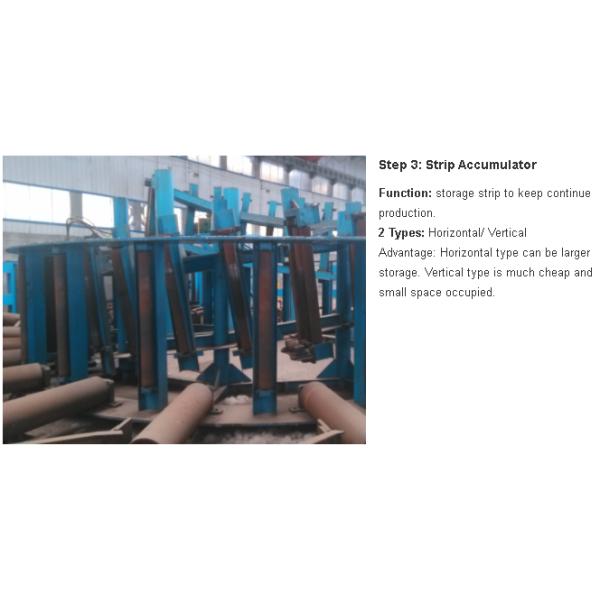

Steel Coil → Double-arm Uncoiler → Shear and End Cutting & Welding → Coil Accumulator → Forming (Flattening Unit + Main Driving Unit + Forming Unit + Guide Unit + High Frequency Induction Welding Unit + Squeeze Roller) → Deburring → Water Cooling → Sizing & Straightening → Flying Saw Cutting → Pipe Conveyor → Packaging → Warehouse Storage
Machine Details
Company Profie
Zhongtai Group is established in 2000, locates in Shiiazhuang. We are an IS09001 certified pipe making machine
and cold rolled section steel forming machine manufacturer, reputed enterprise in China's pipe making industry with
the largest production capacity, the most advanced technology and strongest competitiveness,one of the executive
directors of China Cold-formed Steel Structure Association and one of China's top ten pipe making machinery brands.
There are three subsidiary companies respectively carry out technology devel-opment, production processing and mould
manufacturing. Plant area 67000 m,with machining, heat treatment and assembly plants.
Factory Tour
Certificate
Customers Visiting
Trade Show
ZTZG Transport
The First
FAQ
Q:Are you manufacturer?
A:Yes,we are manufacturer.We have our own technical team.Welcome to
visit us.
Q:What kind o f payment term you can do?
A:We are flexible about payment terms,we can also help you on
financing,please
contact us for details.
Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the
profile drawings,
material information,your special requirements.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales
service.Also we
can help you to solve the material(steel coil)purchase,worker train,international
market price.
Q:How do you do QA?
A:We have special team do strict QA,this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to
guarantee there is no
leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of
tolerance critical parts
will be inspected for all dimensions.
Q:Why I should choose you,what are the differences between you and
other
Chinese suppliers?
A:We are concentrate on this area for more than ten years.
Pre-sale:If the customer can not provide detailed technical information,our engineer
will go to the customer’s plant,draw precise drawings after measuring unit,to meet
your production requirement.
After-sale:Our strong team of engineers and experienced technicians can provide
you with installation instructions,operating instructions,quality control guidance
|
