| Categories | IBM Injection Blow Molding Machine |
|---|---|
| Brand Name: | DAWSON |
| Model Number: | IBM35D |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD $28,900.00 - $66,800.00 per set |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5 set per month |
| Delivery Time: | 55-65 working days |
| Packaging Details: | Blow molding machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos o |
| Products: | Plastic cosmetics, daily necessities shampoo bottles. |
| Hollow part volume: | 5ml to 1L |
| Samples provided: | Provide bottle sample after mold test for confirmation |
| Warranty: | 12 month |
| Company Info. |
| Dawson Machinery & Mould Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
One step three stations plastic shampoo bottles Injection Blow Molding Machine
The process of injection blow molding (IBM) is used for the production of hollow glass and plastic objects in large quantities. In the IBM process, the polymer is injection molded onto a core pin; then the core pin is rotated to a blow molding station to be inflated and cooled. This is the least-used of the three blow molding processes, and is typically used to make small medical and single serve bottles. The process is divided into three steps: injection, blowing and ejection; The product has no splicing, high strength at the bottom, uniform wall thickness and high precision of mouth size; There is no corner scrap or flash, and the seam line of the product can hardly be seen;

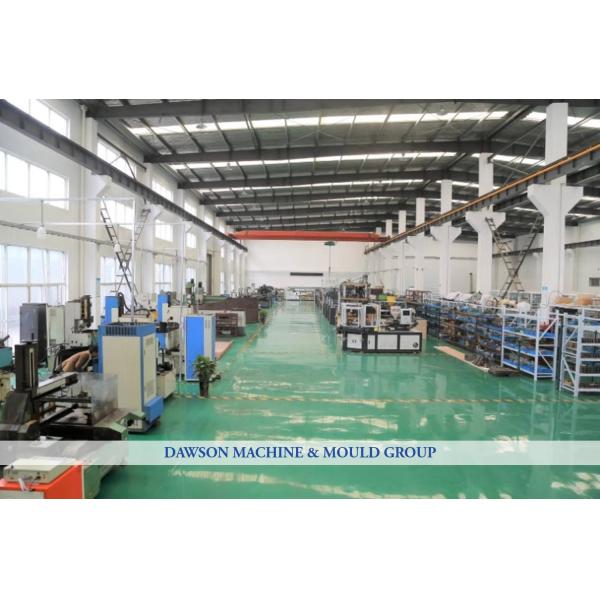

DAWSON MACHINERY & MOULD GROUP
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka,
Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy,
India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya,
Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
| Item | Unit | Data | |
| Injection system | Screw Diameter | mm | 50 |
| Max. Theoretical injection capacity | G | 314 | |
| Heating capacity | KW | 10 | |
| No. of heating area | Qty | 3 | |
| Clamping & blowing system | Clamping force of injection | kn | 650 |
| Clamping force of blowing | kn | 89 | |
| Opening stroke of mold platen | mm | 140 | |
| Max. Platen size (L×W) | mm | 740×390 | |
| Min. Mold thickness (H) | mm | 280 | |
| Heating capacity of mould | KW | 5.0 | |
| Product dimension range | Suitable bottle range | ml | 5-800 |
| Max. bottle height | mm | ≤200 | |
| Max. Dia. of bottle | mm | ≤80 | |
| Hydraulic driving system | Motor power | KW | 17 |
| hydraulic pressure | Mpa | 14 | |
| Pneumatic system | Min. Air pressure | Mpa | 1.0 |
| Discharge rate of compressed air | M3/mm | ≥0.8 | |
| Cooling system | Water flowage | M3/h | 4 |
| Total rated power with mold heating | KW | 45 | |
| Machine information | Dimension | M | 4×1.28×2.35 |
| machine weight | Ton | 7.5 | |
* Excellent plasticizing unit
* Bridge clamping unit for synchronism mould open/close, cycle time less
* Servo system can save 35 to 40% energy compared to normal system
* Servo rotary, precise, long using time, easy maintenance, save energy.
* Optional injection with all-electric way, replacing hydraulic way * CE certificate
* Oil pump and hydraulic valve (Directional Valves, Power saving
valves, Pilot operated check modular valves, and Throttle check
modular valves): YUKEN brand Ex JAPAN.
* Pneumatic valve connector: FESTO Ex Germany.
* Oil seal: VALQUA brand Ex JAPAN.
* Controlling system: Act Technologies
* Electronic Rulers: Italy GEFRAN
* Molded case circuit breaker, contactor, Thermal overload relay: SCHEIDER brand Ex FRANCE.
|
