Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install

Categories Handheld Barcode Scanner
Brand Name: RAKINDA
Model Number: LV2097
Certification: CE, RoHS,FCC
Place of Origin: Shenzhen, Guangdong, China
MOQ: 1 pcs
Price: Negotiation
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5000 PCS/ month
Delivery Time: Within 5 working days after receiving the balance
Packaging Details: Normal craft paper and foam
Optical Resolution: 640*480COMS
Scanner module: Support 1D 2D code

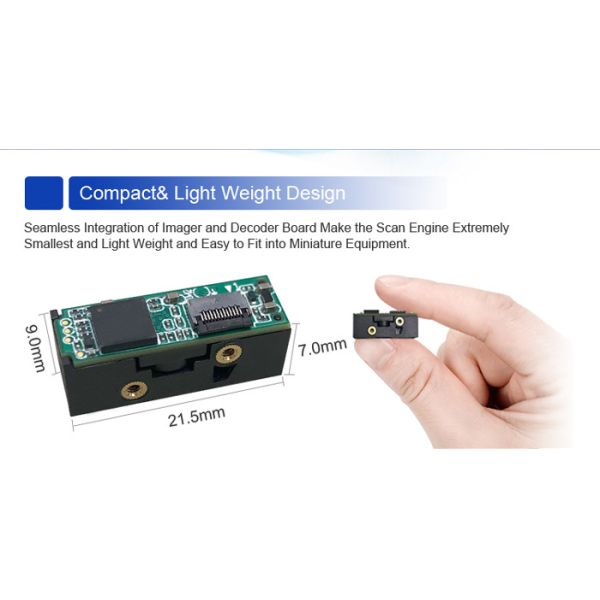

Size: 21.5(W) X9.0(D)x7.0(H)mm (max)
Operating Voltage: 3.3VDC±5%
Connector: TTL232 12Pin or USB
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install

Mini size QR code scanner fast scan 1D 2D barcode reader samll for handheld device easy install

With the help of bar code recognition technology, the functional content of various handheld terminals and other applications has become more and more abundant. For example, in supermarkets, we can see that the staff can identify the screen payment code through the red light bar code scanner module embedded in the portable POS device to meet the needs of expanding the comprehensive cashier of merchants; For bar code identification on commodity labels, staff can complete accurate and efficient inventory through the embedded scanning module of handheld devices, reduce manual inventory time and improve efficiency.

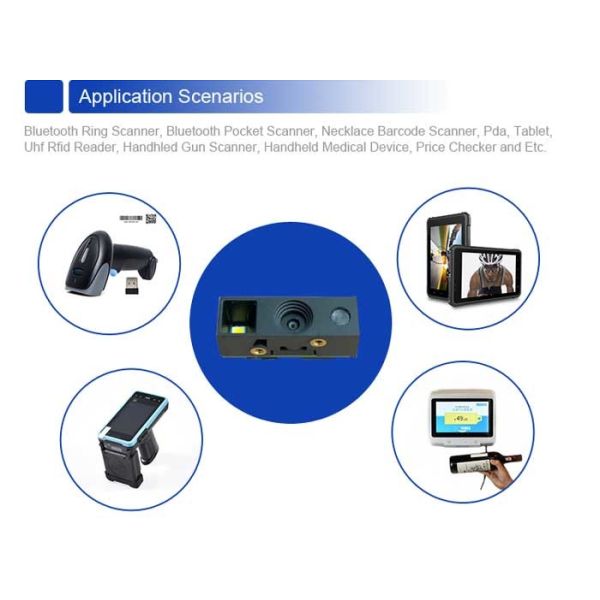

1) The barcode scanning head is embedded in the medical tablet/medical device to facilitate the mobile rounds;
2) The barcode scanning head is embedded in the portable tablet and applied to the station/scenic entrance ticket;
3) Barcode scanning head embedded in Android industrial tablet for warehousing/logistics management, realizing fast inventory;
4) Bar code scanning head embedded in the flat panel is applied to the invoicing, ordering meeting and other industry requirements of the store counter;

PerformanceImage Sensor640 480 CMOS

Illumination
Aiming

White LED
Red LED (625nm)

Symbologies2DPDF417, QR Code, Micro QR, Data Matrix.
IDCode 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM 128, Plessey, MSI-Plessey
Resolution*>3mil
Typical Depth of Field*

EAN-13 (13mil): 60mm-350mm
Code 39 (5mil): 40mm-150mm
PDF417 (6.7mil): 50mm-125mm
Data Matrix (1 Omil): 45mm-120mm
QR Code (15mil): 30mm-170mm

Min. Symbol Contrast*25%
Scan AngleRoll: 360.,Pitch: ±60°, Skew: ±60°
Field of ViewHorizontal 42°, Vertical 31.5°
Mechanical/InterfaceTTL-232, USB
ElectricalOperating Voltage3.3VDC±5%
Current@3.3VDCOperating138mA (typical)
Idle11.8mA
Dimensions21.5(W) X9.O(D) x7.0(H)mm (max)
Weight1.2g
EnvironmentalOperating Temperature-20°C to 55°C
Storage Temperature-40°C to 70°C
Humidity5% to 95% (non-condensing)
Ambient Light0~100,OOOlux (natural light)
CertificationsFCC Parti 5 Class B,CE EMC Class B, RoHS2.0, IEC62471
AccessoriesEVK-N1Software development board for the NLS-N1, equipped with a trigger button, beeper and RS-232 & USBType-C interfaces.
Cable

USB Used to connect the EVK-N1 to a host device.
RS-232 Used to connect the EVK-N1 to a host device.
