Single Sided Spot Welder Multi-Function Electric Rotating Welding Head

● Lithium battery spot welding machine, single sided automatic welding, modular design quiet, stable, and efficient.

● Enhanced design can also be used for automatic welding of protective plates in various PACK schemes.

● The CBMO4-6040 lithium battery pack spot welding machine can achieve left and right platform operation, with no interference between the left and right platforms, or can only use a single platform.

● The equipment adopts Taiwan's silver guide rail module, which has high accuracy, low noise, smooth sliding, and durability.

● The welding direction can be adjusted according to the nickel slot position of the battery pack. The maximum rotation angle of the welding needle is 135 ° to avoid welding errors caused by the inability of the welding head angle to rotate.

● Automatic alarm for lithium battery spot welding machine, manual adjustment for automatic zone welding, single spot welding machine.

● Automatic manual programming for battery spot welding, CAD drawing, and importing spot welding paths can quickly achieve programming. Easy to learn, ordinary workers are fully capable.

● High definition LCD touch screen, human-computer interaction interface, easy to operate.

● Independently developing various automated intelligent systems to facilitate device setup and operation, helping to improve production efficiency.
Cheebo technology lithium battery welding machine has functions such as energy switching, production counting, welding needle compensation, and manual debugging.

● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, and anti-static.

● Imported acrylic shield plate, beautiful and scientific, visual operation to improve production Factor of safety.

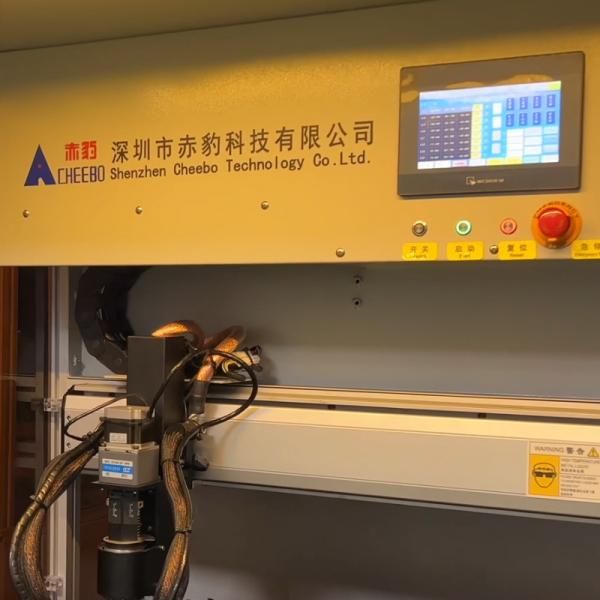

1. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

2. Lead screw guide

WIHIN screw guide module, high precision, low noise, smooth sliding, durable.

3. Cooling system:

Water circulation heat dissipation, instantaneous large current welding, welding head always maintain constant temperature, effectively reduce the loss of welding needle, improve the welding effect.

Cell/bracket/battery nickel piece loading fixture -- Place fixture to left platform induction position -- automatic spot welding of the device is

completed to send the fixture to the material retrieval position -- manual flip fixture -- Place the fixture to the right platform induction position --

automatic spot welding of the device is completed to send the material retrieval position -- remove the battery pack from the fixture -- for the next

production cycle (the platform can be put in when the left platform is working) The product, waiting for the platform welding to be completed, will

automatically transfer to the right platform welding. When welding the right platform, the left platform can replace the product, waiting for the right

platform to complete the welding, will automatically transfer to the left platform welding, in turn cycle)

Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.

Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.

Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.

Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
