Substation Field Transformer Oil Filtration Equipment Dust Proof Blue Color

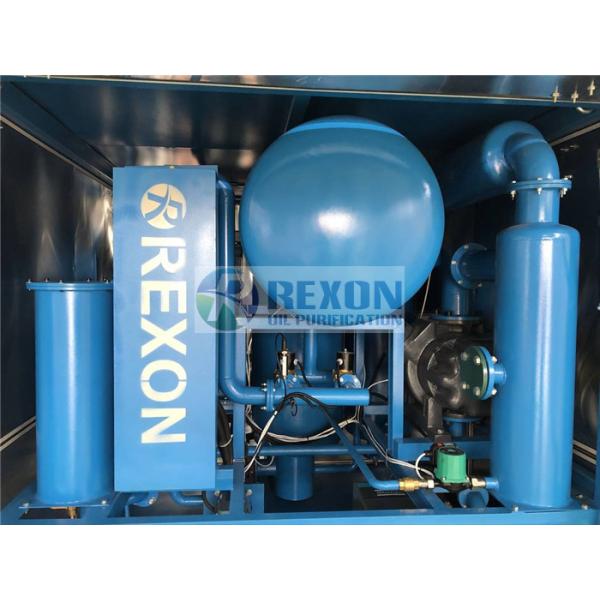

Fully Enclosed Type Substation Field Use Vacuum Insulation Oil Purification System 6000 Liters/Hour

Transformer oil treatment plant means?
Old transformer oil is generally mixed with gas, water and contaminants, and also the new transformer oil sometimes, the content of the contaminants generally increases fast by time. So the transformer oil treatment machines can remove these associated gases, water and contaminants, and separate them from the oil and take them away. After treating the oil by our oil treatment plant, the stabilized oil is then again ready to be used in power transformers.

Transformer oil purifier ZYD brings?
Series ZYD Double-stage vacuum transformer oil purifier can remove the water, gas and impurities in insulation oil high-efficiently, increasing the pressure force and quality of oil, make the oil limiting voltage-withstand value much higher and make sure the electric device running safely. The machine is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, dielectric oil and so on. It also can be used for filtration of more than 110KV substation live line work onsite. Meanwhile, as the bridge-type vacuum linking system, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

Feature:
1. This machine is high effective and portable, which is very suit to operate on line. Also it can be used to dry the electric equipment and input the oil into the electric equipment under the vacuum state.
2.The machine adopts the double-infrared liquid automatic controller, sensitive automatic pressure protector and the high effective equipment for degas, so it is easy to operate.
3. High vacuum limiting vacuum less than 5pa, working vacuum less than 35pa.
4. High absorption speed, absorption speed power more than 333L/Sr.
5. Duplex 3D stereo-evaporation technology, eliminating the liquid water very effectively.
6. UK G technology by which the trace water that is show chain, such as dissolved water, can be removed effect.
7. Distinctive removing impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power.
8. Carbon fiber infrared heating system that can make the oil contains zero sum of ethyne after treatment.
9. The oil of any grades can be treated on line at the working site.

Advantages:
Fully Enclosed Type Substation Field Use Vacuum Insulation Oil Purification System 6000 Liters/Hour, Comparing with the single-stage vacuum oil purifier, series ZYD adds ROOTS vacuum system, second stage of separating system to improve the effect of purification which dewaters, degases and removes impurities more quickly, more completely and make the oils limiting voltage-withstand value much higher.
This machine also can remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly. As the bridge-type vacuum linking system that can filter and be an independent vacuum power supply, this machine can be vacuum treating the electric insulating devices. Series ZYD utilizes coacervation technology, coalescing technology, separating technology and refined purification technology.

Application:
Fully Enclosed Type Substation Field Use Vacuum Insulation Oil Purification System 6000 Liters/Hour, ZYD is special for filtering the used and old transformer oil, mutual oil, switch oil. Comparing with the single-stage type, this machine adopts the double stages vacuum system, which can improve the machine's working vacuum value highly, so it can dewater, degas and remove the impurity more deeply and effectively. The dielectric value of treated oil is higher than 80KV. It is very suitable for the large electric & insulation equipments.

Technical Parameters:

The oil technical data after treatment:
1. Gas content less than 0.1%
2. Impurity size less than 1μm without free carbon
3. Oil dielectric strength (breakdown voltage) more than 75KV
4. Acidity value less than 0.01 mgKOH/g
5. Dielectric loss factors at 90°C less than 0.001

Chongqing Rexon Oil Purification Co., Ltd was built in year of 2006 and located in Chongqing city, China, which is a famous industrial machinery city. As a leading oil purifier manufacturer and oil purification technology development company, we specialized in designing, producing, developing and selling various types of oil purification equipment such as transformer oil purifier, turbine oil purifier, lube oil purifier, hydraulic oil purifier, engine oil purifier, ship oil filtration plant, used cooking oil purifier, centrifuge oil separation purifier and all other industrial oil purification machines. We offered professional oil solutions service and oil purifier machines for world-wide customers near 15 years. Our equipment can be applied to many industrial fields, such as the electric power, petroleum chemical, metallurgical industry, mine, aviation, shipping and railway, factories, and so on. We have sold products to Africa, North America, South America, Asian countries, worldwide places. And we have been to customers' on-site places to offer training and commissioning services for customers as required like Africa countries, Asian countries etc. From these years work for oil filtration and on-site oil processing, we gain rich experiences and researching in better machines and keep us developing all the time. We are aiming to save oil energy sources and save new oil cost for our customers, through purifying their old oil, and maintaining their oil cleanliness to keep their oil always in good condition as new to use into their machinery, equipment and system. And under this situation, these machinery and equipment can be always maintained well too, so their lifetime can be also prolonged largely.

We have a number of national-class oil purification experts and experienced technology engineers, mechanical designers, and machine engineers and well skilled workers, and responsible sales persons as a strong team of our REXON group. Based on our powerful technical researching and operating team support, we have offered professional oil solutions service and various kinds of oil purification machines to world-wide customers. After these years' practice in oil purifying area, we step on a much higher level of our products, and we get high reputation from customers!
Our QC department will make detailed testing and inspection on each of our oil purifier machine before packing and delivery. Every machine sent from our factory need to be tested for hours and qualified by QC department, then it has the testing certificate and allowed to be sent out of factory. Rexon company will always keep efforts on quality control and guarantee.
