TR ZC13H N00 Optical Transceiver Module sfp fiber module original new QSFP28 MSA compliant
(Optical Transceiver Module sfp fiber module single mode sfp module)
Product overview
100Gb/s QSFP28 DR Single Lambda Optical Transceiver TR ZC13H N00
This product is a transceiver module designed for 500m optical
communication applications.The module incorporates one channel
optical signal, on 1310nm center wavelength, operatingat 50Gbaud
data rate. The transmitter path incorporates an EML Driver and a
cooled EMLtogether. On the receiver path, the input optical signal
is coupled to a Pin photodiode detector.A DSP based gearbox is used
to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal.Also a
4-channel retimer and FEC block are integrated in this DSP. The
electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA
in the transmitting and receiving directions, andoptical interface
is compliant to IEEE 802.3cd and 100G Lambda MSA with Duplex LC
connector. The module has a maximum power consumption of 4.5W. The
product is designed with form factor, optical/electrical connection
and digital diagnosticinterface according to the QSFP28
Multi-Source Agreement (MSA). It has been designed to meet the
harshest external operating conditions including temperature,
humidity and EMI interference.

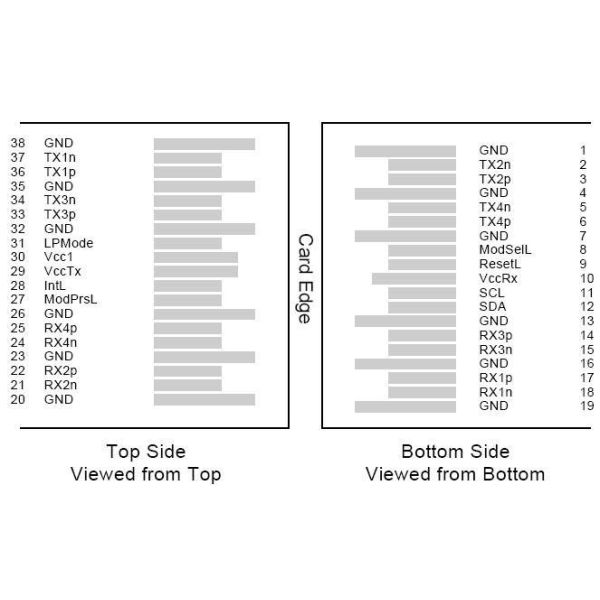

MSA Compliant Connector
| P/N | Product Description | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach | Temperature (deg C) |
| TR-FC85S-N00 | QSFP28 SR4 | 100G | 850nm VCSEL | PIN | -8.4 | 2.4 | -10.3 | 2.4 | 2.5 | 100m | 0-70 |
| TR-FC13R-N00 | QSFP28 LR4 Ethernet | 100G | 1296-1309nm LWDM DFB | PIN | -4.3 | 4.5 | -10.6 | 4.5 | 4 | 10km | 0~70 |
| TR-FC13T-N00 | QSFP28 CWDM4 | 100G | DFB CWDM | PIN | -6.5 | 2.5 | -11.5 | 2.5 | 3.5 | 10km | 0~70 |
| TR-FC13D-N00 | QSFP28 ER4 Lite | 100G | 1296-1309nm LWDM EML | APD | -2.5 | 6.5 | -16.65 / -20.5 | -3.5 | 4.5 | 30km / 40km (w/ FEC) | 0~70 |
| TR-FC13D-NSN | QSFP28 ER4 Lite Dual Rates | 100G / 112G | 1296-1309nm LWDM EML | APD | -0.7 | 6.5 | -14.85 / -18.7 | -3.5 | 4.5 | 30km / 40km (w/ FEC) | 0~70 |
| TP-VC13Txxxx-N00 | QSFP28 PSM4 Pigtail | 100G | 1310nm DFB | PIN | -5.5 | 2 | -10.5 | 2 | 3.5 | 2km | 0~70 |
| TF-FCxxx-N00 | QSFP28 AOC | 100G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A | N/A | 10km | 0~70 |
| TR-VC13T-N00 | QSFP28 PSM4 | 100G | 1310nm DFB | PIN | -5.5 | 2 | -10.2 | 2 | 3.5 | 2km | 0~70 |

Product Specification

Figure 1. Transceiver Block Diagram







|   |
