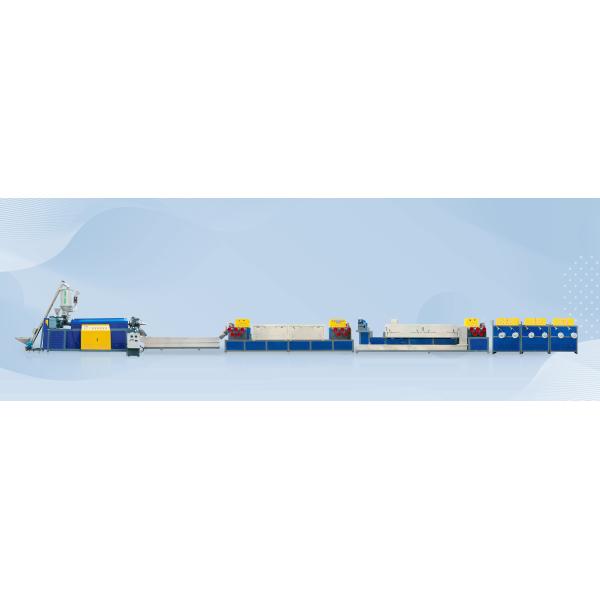

High Speed Automatic Pet PP Polyester Strap Strapping Production Making Machine with Competitive Price
PP Plastic Packing Belt Making Machine PET Strap Tape Extruding Machine
Quick Detail Of PP strapping band making machine
Our company has more than 30 years of experience in the packaging belt equipment manufacturing industry in China, with a professional R & D team, sales team, production plant. Our processing equipment imported from Germany, technical stuff often go abroad for further study. The company has more than 50 patents. In China's packaging industry, our company has a good reputation, advanced technology, high-end products, has always been in the first place, we can provide customers with better quality equipment, production of higher-end products.
PP strapping tape production line currently has the following extrusion capacity,
1 tape: 60-70Kg/h, (small)
2 tapes: 80-90Kg/h, (small)
2 tapes: 100-120Kg/h,
4 tapes:230-260Kg/h,
6 tapes:350-380Kg/h,
8 tapes:450-480Kg/h, of course we also have 10 tapes, 12 tapes... We can customize different extruder models according to customer requirements.
pp strapping roll manufacturing machine
pp strapping roll making machine
pp strap manufacturing machine
pp packing strap making machine
| Model | PP-2 | PP-4 | PP-6 | PP-8 | PP-10 | PP-12 |
| Raw material | PP polypropylene new material/recycled material | |||||
| Number of tapes | 2 | 4 | 6 | 8 | 10 | 12 |
| Width(mm) | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 |
| Thickness(mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
| Line speed(m/min) | ≧260-300 | |||||
| PLC control system | PLC | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 110 | 125 | 135 | 135 | 135 |
| Reducer model | 200 | 220 | 250 | 280 | 280 | 280 |
| Drying barrel (kg) | 100 | 150 | 200 | 200 | 200 | 200 |
| Winding machine | Automatic winding machine /Semi-automatic winding machine | |||||
| Screen Changer | Automatic/Manua | |||||
| Production capacity 24H | 2.5-3T | 6-7T | 8-9T | 10-11T | 12-13T | 13--14T |
Process flow of PP packing belt production line
① Feeding →② stirring →③ pre-drying →④ melting and measuring extrusion →⑤ embryo (belt embryo) cooling and forming →⑥ oven preheating →⑦ primary stretching →⑧ secondary stretching →⑨ embossening → oven tempering and setting → cooling → finished product winding
The PP strapping equipment is equipped with 2 sets of feeders, one large and one small. One is used to add fillers to the raw
materials during production (the fillers are generally defoamers, which can remove moisture from
the raw materials, etc.), and the other is used to add dye masterbatch
(Dye masterbatch: It is a raw material with brighter colors, which can make the
color of the finished strapping tape brighter)
The paper core specifications of the PP strapping equipment winding
machine are usually: ￠200*180mm
200 is the inner core size of the paper core, 180mm is the height
of the strapping winding
FAQ
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping tape??
A: L:36 M.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide
24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own
PP packaging belt production plant, equipment quality is stable,
the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size,
extrusion capacity, voltage and so on according to customer
requirements.
Q:What does the wrapping machine part of the PP strapping equipment look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
|
