Super High Speed Steel Coil Longitudinal Precision Slitting Line 4 X 1600 180mpm

Super High Speed Steel Coil longitudinal Slitting Lines 4 x 1600 180mpm

Our new type advanced longitudinal slitting line gives much higher speed, stability and precision.
1. Single mandrel decoiler:
press one button on operator panel, centralizing to easily adjust coil on central line.
If partial coil is slit, the remaining coil sheet can return back to uncoiler
uncoiler mandrel is zigzag teeth segments to protect inner steel sheet not bruised.
paper peeling device in front of uncoiler to peel off wrapped paper.

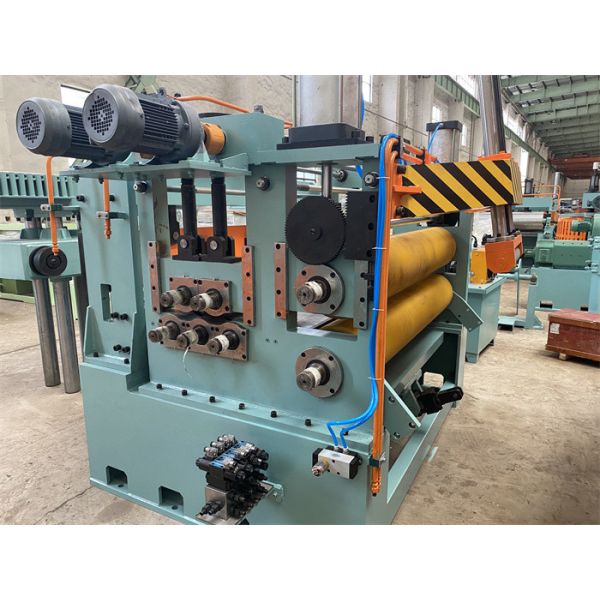

2.Pinch roller plays deflection guide role and pinch feeding roles.
3.Side guide and horizontal guide: to guide steel strip in center and not jump up down.
4.Slitter:

• high precision tools Disc slitting knives: SKD-11, HRC 60-62, knife thickness tolerance within ±0.003mm.
• PU circled disc spacers: the same precision as knife as spacer and also as knife cushion.
• wood plates spacers are available for thin sheet slitting
• slitting tools arrangement program makes slitting accessories change easy.
• We also give option of double slitter heads automatic exchanging with each other on exchange base, one slitter is working online while workers can arrange knife tools on the other slitter, automatically check arranged knife clearance.

5. Scrap winder: vertical winding reels on ear frame of guide roll table, the edge scraps itself fall down, and tail press roller hold slit stips tails.
6. Pre separating and tensioner: all separating shafts are the same and easily dismantled and installed.
tension provision is variable piston pump hydraulic system,two hydraulic cylinders on top give balance pressure.
7. Post shear and Deflector roller: post shear cut off irregular strips tails,making packing on recoiler easier.
Encoder on deflector roller track the slitting length and shows on touch screen.
8. Recoiler: overarm press separator from top to press down with brusher brushing off strips clean.
triangle door rotating to support recoiler mandrel shaft firmly and precisely.
Seamless mandrel to protect steel coils inner surface.
9. Hydraulic piping adopts clamp lock type, solid structure and easy to install and dismantle.


Parameters:

Composition and Parameters:

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
