| Categories | SAW Touch Monitor |
|---|---|
| Brand Name: | KeeTouch |
| Model Number: | KOT-215P-006(KOT-0215US-SA6BP) |
| Certification: | CCC, UL, FCC, CE, CB, RoHS |
| Place of Origin: | Shenzhen，China |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Pieces per Week |
| Delivery Time: | 7-15 work days |
| Packaging Details: | carton box |
| Series: | OT |
| Response Time (Typ.): | 5ms |
| Contrast Ratio (Typ.): | 1500:1 |
| Video Input: | VGA/DVI |
| Display voltage: | DC 12V±5% |
| LED Back Light Life (Typ.): | ≥30,000 Hours |
| Product name: | SAW Touch monitor |
| Regular Warranty: | 1 year |
| Company Info. |
| Keetouch Co., Ltd. |
| View Contact Details |
| Product List |

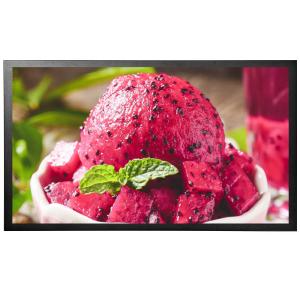

SAW Touch Monitor Main Features:
This SAW touch monitor comes with dust-proof function. The high quality LCD screen and scratch resistant touch panel deliver a long working life span. There are multiple mounting options like VESA mount, vertical brackets mount. It's well compatible with XP, WIN7, WIN8, WIN10,Android. In addition, other sizes (7’’-43’’) are available.
SAW Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0215US-SA6BP (P/N:KOT-215P-006) | |
| Series | OT | |
| Display Type | 16:9 Ratio 21.5" TFT-LCD | |
| Active Area | 476.6*268(mm) | |
| Monitor Dimensions (W*H*D) | 515*313*52(mm) | |
| Suggested Resolution | 1920*1080 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 225cd/m2 | |
| Response Time (Typ.) | 5ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGA/DVI | |
| Frequency (H/V) | 30～80KHz / 50～76Hz | |
| Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥30,000 Hours | |
| LED Back Light Life (Typ.) | ≥30,000 Hours | |
| Weight(N.W/G.W) | 7Kg(1pcs)/17Kg(2pcs in one package) | |
| Package dimensions | 605*400*195(mm)(2pcs in one package) | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤30W | |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 21.5" Surface acoustic wave touch screen |
| Touch input | USB/RS232 |
| Response Time | ≤8ms(USB) ; ≤12ms(RS232) |
| Hardness | 7H |
| Light Transmittance | ≥90% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 477*268(mm) |
| Thickness | 6±0.2(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
SAW Touch Monitor Mechanical Dimensions
Applications
Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for the SAW Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the SAW Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
5. What is your delivery time?
6. 3-5 work days for inventory orders, 7-15 business days for bulk production.
|
