| Categories | Network Switch |
|---|---|
| Brand Name: | H3C |
| Model Number: | H3C CE8875-24BQ8DQ Switch |
| Place of Origin: | Fujian, China |
| Price: | $8,570.00/pieces 1-9 pieces |
| MOQ: | 1 unit |
| Private Mold: | NO |
| Products Status: | Stock, Used, Stock |
| Ports: | ≥ 48 |
| Transmission Rate: | 10/100/1000Mbps |
| Function: | LACP, SNMP |
| Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 56 Gb/s |
| Product Name: | H3C CE8875-24BQ8DQ Switch |
| Type: | Rack |
| Company Info. |
| Beijing Yongchang Gaotai Technology Development Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Basic Information | |

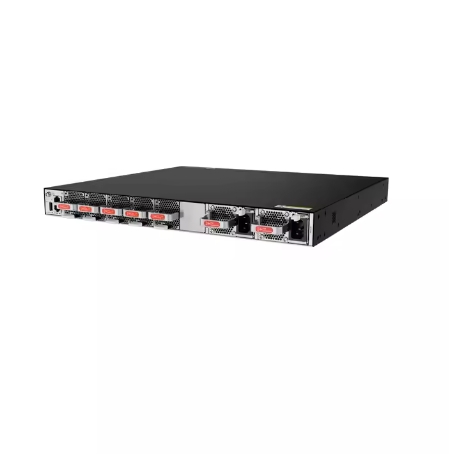

| describe | CE8875-24BQ8DQ switch (24*200GE QSFP56, 8*400GE QSFP-DD, 2*AC power
supply, 5*fan box, port side air intake) |
| Part Number | 02355SDX |
| model | CE8875-24BQ8DQ |
| Technical indicators | |
| Other parts codes | 02355SDV (CE8875-24BQ8DQ switch (24*200GE QSFP56, 8*400GE QSFP-DD,
without power supply and fan)) 02355SDY (CE8875-24BQ8DQ switch
(24*200GE QSFP56, 8*400GE QSFP-DD, 2*AC power supply, 5*fan box,
port side outlet)) |
| Installation | Cabinet installation |
| Height [mm] | 43.6mm |
| Depth [mm] | 420.0mm |
| Width [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Weight (full configuration, including packaging materials) [kg] | 12.17kg |
| Weight (including packaging) [kg] | 9.71kg |
| Weight (full configuration, excluding packaging materials) [kg] | 9.16kg (with AC power supply and fan box, excluding optical
modules. If multiple modules are supported, the maximum weight is
used.) |
| Weight (excluding packaging materials) [kg] | 6.74kg (without optical module, power supply and fan box) |
| Maximum power consumption [W] | 522W (100% load, 24x200G+8x400G short-distance optical modules,
normal temperature, dual AC power supplies) 770W (100% load,
24x200G+8x400G long-distance optical modules, high temperature,
dual AC power supplies) |
| Typical power consumption [W] | 291W (100% load, 12x200G+4x400G ports copper cables, normal
temperature, dual AC power supplies) 382W (100% load,
12x200G+4x400G ports short-distance optical modules, normal
temperature, dual AC power supplies) |
| Static power consumption | 247W |
| Maximum heat dissipation value [BTU/hour] | - 1781 BTU/hour (100% load, 24x200G+8x400G short-distance optical
modules, normal temperature, dual AC power supplies) - 2627
BTU/hour (100% load, 24x200G+8x400G long-distance optical modules,
high temperature, dual AC power supplies) |
| Typical heat dissipation value [BTU/hour] | - 993 BTU/hour (100% load, 12x200G+4x400G copper cables, normal
temperature, dual AC power supplies) - 1303 BTU/hour (100% load,
12x200G+4x400G short-distance optical modules, normal temperature,
dual AC power supplies) |
| Cooling method | Air cooling |
| Static heat dissipation value [BTU/h] | 843BTU/hour |
| Power supply type | AC pluggable, DC pluggable, HVDC pluggable |
| Rated input voltage [V] | - 1200W AC & 240V DC power module: AC: 100V AC ~ 240V AC, 50/60Hz;
DC: 240V DC - 1200W DC power module: -48V DC ~ -60V DC; +48V DC |
| Input voltage range[V] | - 1200W AC & 240V DC power module: AC: 90V AC ~ 290V AC, 45Hz-65Hz;
DC: 190V DC ~ 290V DC - 1200W DC power module: -38.4V DC ~ -72V DC;
+38.4V DC ~ +57V DC |
| Maximum input current [A] | - 1200W AC & 240V DC power module: 10A (100V AC ~ 130V AC); 8A
(200V AC ~ 240V AC); 8A (240V DC) - 1200W DC power module: 38A
(-48V DC ~ -60V DC); 38A (+48V DC) |
| Rated output power [W] | - 1200W AC & 240V DC power module: 1200W - 1200W DC power module:
1200W |
| Memory | DRAM:8GB |
| NOR Flash Specifications | 64MB |
| SSD Flash | 4GB SSD |
| USB interface | Can be used for log backup and USB flash drive deployment. This
function is reserved and has not been enabled yet. |
| Console Interface Type | RJ45 |
| Downlink service port | 24x200G QSFP56 |
| Service uplink port | 8x400G QSFP-DD |
| Supports service port stacking interfaces | This function is reserved and has not been enabled yet. |
| Real-time Clock (RTC) | support |
| Switching capacity [Gbps] | If you need this specification, please check the product brochure
or contact the product salesperson to obtain it. |
| Fan redundancy | Supports 4+1 backup and hot backup of fan modules. When a single
fan module fails, the system can still work normally for a short
period of time. However, it is recommended to replace the failed
fan module immediately. |
| Power redundancy | 1+1 backup |
| Number of power modules | 2 |
| Power port lightning protection | AC: Common mode 6kV, differential mode 6kV DC: Common mode 4kV,
differential mode 2kV HVDC: Common mode 4kV, differential mode 2kV |
| Fan Type | Pluggable fan |
| Number of fans | 5 |
| Airflow direction | Port-side air inlet/port-side air outlet is determined by the
selected fan modules and power modules. The air ducts of the fan
modules and power modules must be consistent. |
| Storage temperature [°C] | -40°C～+70°C |
| Long-term working environment temperature [°C] | 0°C to 40°C (0m to 1800m) Note: At altitudes of 1800m to 5000m, the
maximum temperature specification decreases by 1°C for every 220m
increase in altitude. |
| Storage relative humidity [RH] | 5%RH～95%RH, non-condensing |
| Long-term working environment relative humidity [RH] | 5%RH～95%RH, non-condensing |
| Storage altitude [m] | ≤5000m |
| Long-term working altitude [m] | ≤5000m |
| MTBF [years] | 34.22 years |
| MTTR [hours] | 1.5 hours |
| High temperature 40℃ noise (sound pressure) | Front-to-rear airflow: average 76.2 dB(A) (max: 79dB(A))
Rear-to-front airflow: average 73.1 dB(A) (max: 79.2dB(A)) |
| Noise (sound pressure) at room temperature 27°C | Front-to-rear airflow: average 50.9dB(A) (max: 53.8dB(A))
Rear-to-front airflow: average 50.8dB(A) (max: 54.6dB(A)) |
| Availability | 0.999994996 |
|
