3 Axis Portable Laser Micrometer Diameter Gauge For Fine Wire 24V

Name: 3 Axis Portable Laser Micrometer Diameter Gauge For Fine Wire 24V
Brand: Screate DALA
Price: 1 USD

3 Axis Portable Laser Micrometer Diameter Gauge For Fine Wire 24V

Categories	Laser Diameter Gauge
Brand Name:	Screate DALA
Model Number:	E3
Place of Origin:	CHINA
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T, etc.
Delivery Time:	7 - 15 working Days
Packaging Details:	standard packing, as customer demands
Measurement data:	diameter
Application:	Fine Wire
Measurement:	0.015~1mm
Repeatability:	±0.05μm
Accuracy:	±（0.00012+0.03%*D)mm
Size:	18248186mm
Working power source:	24V ±10% 40VA
Communication:	RS485(Mod bus RTU)，CAN(CAN open)，WIFI(for data debugging)

Contact Now

Add to Cart

Company Info.

SCreate Dala Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

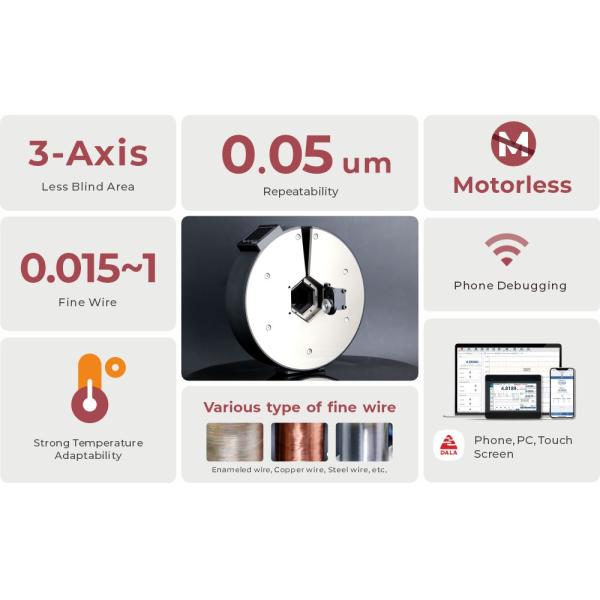

3 Axis Portable Laser Micrometer Diameter Gauge For Fine Wire 24V

E3 Laser micrometer, High precision and long durability

The E3 leverages laser diffraction measurement technology, offering the optimal high-precision solution for fine wire applications. Additionally, its sleek design and uncomplicated structure ensure maintenance is a breeze for years to come.

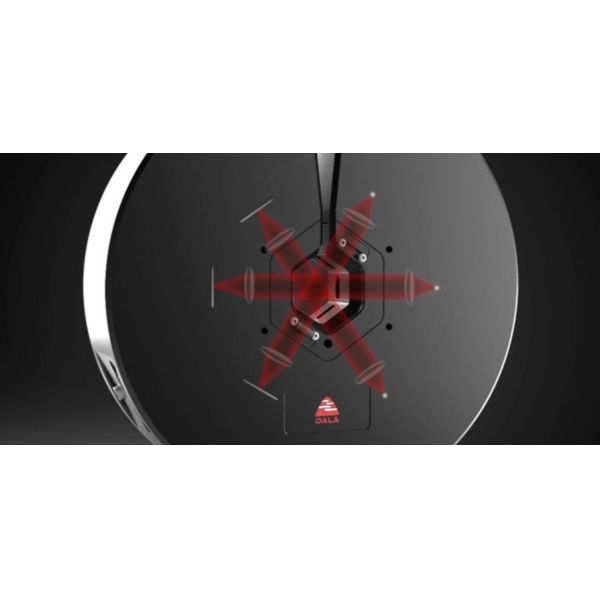

3-Axis Measurement, No moving parts

Reduced blind areas lead to increased accuracy in measurement results.

Touch Screen,Computer,Cellphone

The DALA E3 provides an extensive range of management options, spanning touch screen, computer, and cellphone interfaces. This comprehensive flexibility enables users to fine-tune parameters, seamlessly manage measurement data, and execute a multitude of tasks to precisely meet their specific application demands.

Technical Specification

Model	E3
Axis	3-axis
Measurement data	diameter,Ovality
Measurement range	0.015~1mm
Repeatability	±0.05μm
Accuracy	±(0.00012+0.03%*D)mm
Size	18248186mm
Working power source	24V ±10% 40VA
Running temperature	5℃~50℃
Display	LED display
Commuincation port	RS485(Mod bus RTU),CAN(CAN open),WIFI(for data debugging)
Data colletion & analysis	available(option DS14 ZT display and control system,DMS1000)
Out-of-tolerance alarm	available
Far-end display function	available
