| Categories | Core Drilling Rig |
|---|---|
| Brand Name: | SANROCK |
| Model Number: | SRC400UG |
| Certification: | CE ISO 9001:2015 |
| Place of Origin: | Zhejiang, China |
| MOQ: | 1Set/Sets per Month |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500000Set/Sets per Month |
| Delivery Time: | 15-25days |
| Packaging Details: | Nude package for machines, Wooden box package for spare parts, Or customer demand. |
| Product name: | core drilling rig ,core drilling machine， |
| Name: | Portable core drilling rig，Hydraulic Core Drilling Rig |
| Type: | Core Drilling Rig |
| Drilling depth: | 400m |
| Drilling diameter: | Φ59(BQ)，Φ75(NQ)，Φ95(HQ) |
| Feature: | High Drilling Efficiency,Hydraulic Controlling,Portable |
| Application: | coring machine,geological exploration |
| Power Type: | Electric |
| Motor Power: | 55Kw |
| Spindle rotational speed: | 280-1200r/min |
| Spindle torque: | 910Nm |
| Main pump max pressure: | 31.5MPa |
| Max pressure: | 25MPa |
| Auxiliary pump max pressure: | 21MPa |
| Hydraulic system working pressure: | 20MPa |
| Power head stroke: | 1600mm |
| Underground drilling angle: | 0-360 |
| Azimuth angle: | 0-360 |
| Motor rotational speed: | 1480rpm |
| Machine body/outer size: | 2800㎜×1020㎜×1550㎜ |
| Weight: | 80Kg |
| Power car/size: | 1720㎜×690㎜×1420㎜ |
| Console/size: | 500㎜×405㎜×1080㎜ |
| Axial feeding force: | ≥70KN |
| Axial pulling force: | ≥120KN |
| Condition: | New |
| Warranty: | 1 Year |
| Company Info. |
| Quzhou Sanrock Heavy Industry Machinery Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

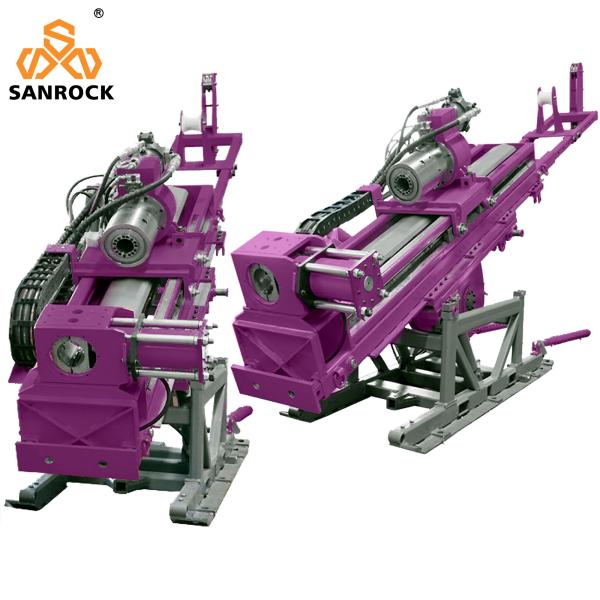

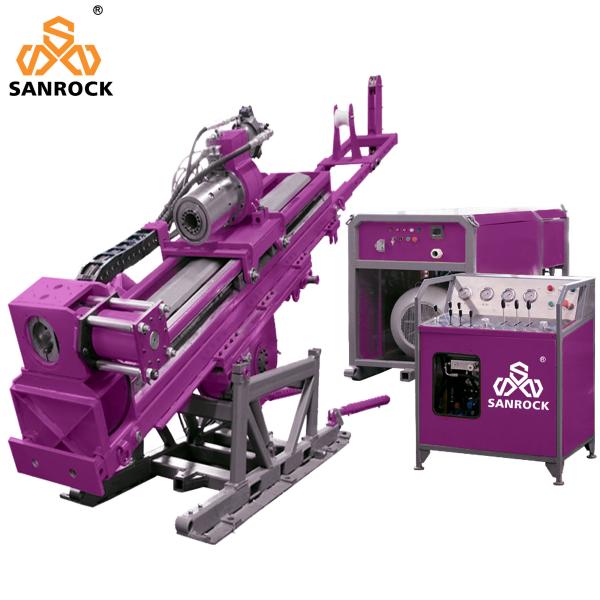

Tunnel Core Sampling Drilling Machine Portable Geotechnical Exploration Core Drilling Rig
Hydraulic underground core drilling rig is suitable fro drilling holes for the purpose of mine exploring,also they could be used in surface coring,railway engineering,tunneling,construction and water conservancy project.Is designed especially for underground 360°drilling work,to drill holes in the tunnel. capable of diamond core drilling and other drilling works.
Features:
1. The sliding and extending & retracting function of the mast makes it convenient for the bottom of mast to touches the ground or platform, thus the drill rig will be more stable.
2. The swinging arm and mast can do luffing movement, which satisfy the request of multi-angle drilling.
3. The core drilling machine system of oatation,feed,pumping and clamping relies on fluid drive.
4. Under bad transportation condition, the main frame also can be disassembled ,easy to transport.
5. It is light weight, small size, easy operation, with good performance, simple structure and easy to maintain.
Products Description
| |

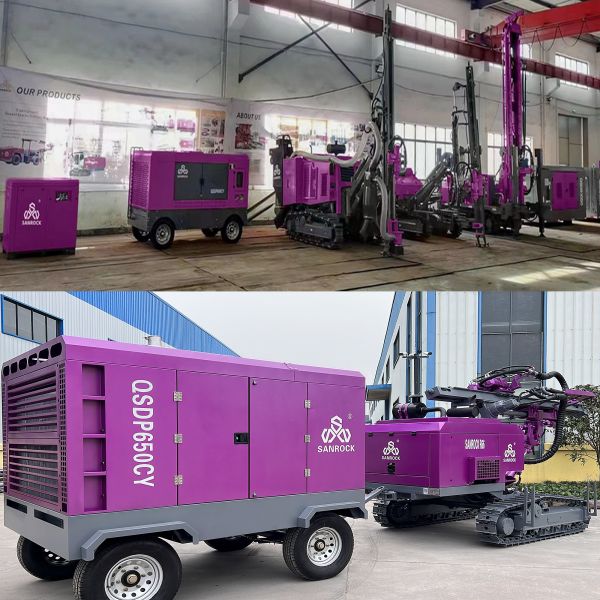

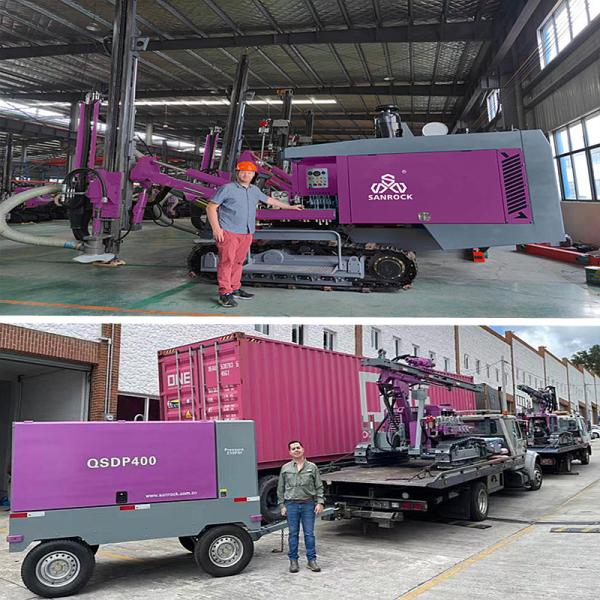

Production shop display
Company Profile
1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
|
