1X16 Character LCD Display | STN+ Gray with Yellow/Green Side Backlight 5.0V-Arduino

1X16 Character LCD Display | STN+ Gray with Yellow/Green Side Backlight 5.0V-Arduino

▶ Product type: Standard COB character LCD module

▶ Display content: 16x1 characters

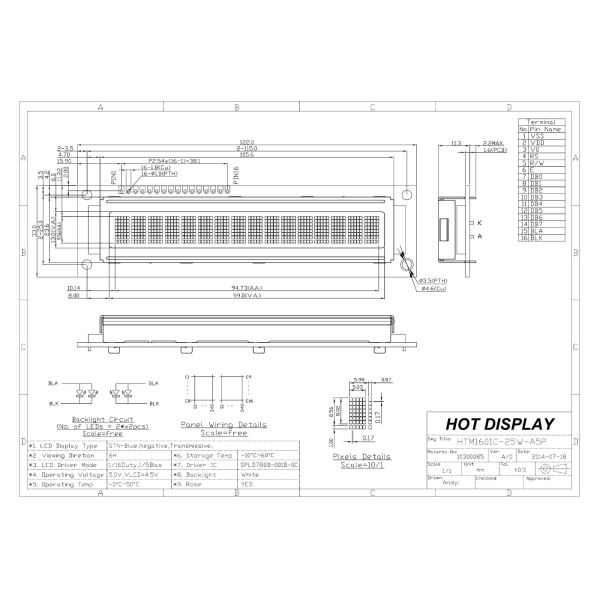

▶ Overall dimensions (mm): 122.0x33.0x8.0

▶ View window size (mm): 99.0x13.0

▶ Display size (mm): 94.73x9.56

▶ Point spacing mm: 1.17x1.04

▶ Product application: industrial control

▶ Viewing angle: 6H

▶ Backlight: yellow/green light

▶ Number of PINs: 16PIN

▶ Interface: MCU

▶ Special instructions: Anti-static ESD 8KV

▶ Working temperature: -20~70℃

▶ Power supply voltage: 5.0v

▶ Driver chip: ST7066U

HTM1601C-11Y-A5P | 1x16 Character Display | Transmissive LCD | Yellow/Green Backlight | STN +Gray Background (Double Film) Display

This 16X1 character LCD shows black pixels on a yellow/green background. This dark mode, transmissive LCD Display requires a backlight for visibility, has an optimal view of 6:00, offers a wide operating temperature range from -20 to 70 degrees Celsius.It operates at a 5V supply, which makes it compatible with all popular development boards, including Arduino.
