Testing Performance requirements for consumer products that contain or are designed to use button cell or coin batteries

Safety Standard 16 CFR 1263
PERFORMANCE requirements
6.4 Secureness test
Button/coin cells are not intended for user removal or replacement, and are accessible shall comply with following test
Compliance is checked by application of a test hook, with a force of 20 ±2 N (4.5 ±0.4 lbf), directed outwards, applied for 10 s at all points where this is possible. During the test, the button/coin cell shall not become separated from the product.

MARKINGS:7 General
7A.1 All warning statements or icons shall be prominent, legible, easily discernable under normal lighting conditions, and permanently marked.

7A.2 Unless otherwise specified, instructional safeguards do not have to be in multiple colors. If an instructional safeguard is present in more than one color to indicate hazard severity, the color shall be in accordance with the ISO 3864 series.
A.3 Printed or screened markings shall also be permanent.

7A.4 Legibility of markings is determined by inspection. Permanency is determined by the tests of Section 7D, Permanence of Markings.

7A.5 Markings must be in the official language(s) of the country where the product is sold or in English if there is no official language(s).
Safety Standard 16 CFR 1263

7A.6 The safety alert symbol, an exclamation mark in a triangle, when used with the signal word, must precede the signal word. The base of the safety alert symbol must be on the same horizontal line as the base of the letters of the signal word. The height of the safety alert symbol must equal or exceed the signal word letter height.

7A.7 Certain text in the message panel must be in bold and in capital letters as shown in the example warning labels to get the attention of the reader.

7A.8 For labels that are provided on a sticker, hang tag, instructions or manual, the safety alert symbol and the signal word “WARNING” must be at least 0.2 in (5 mm) high. The remainder of the text must be in characters whose upper case must be at least 0.1 in (2.5 mm), except where otherwise specified.)

7A.9 For labels that are required to be on the packaging of consumer products and directly on consumer products, text size shall be dependent on the area of the principal display panel. Text size shall be determined based on Table 7A.1.
Safety Standard 16 CFR 1263

7A.9 For labels that are required to be on the packaging of consumer products and directly on consumer products, text size shall be dependent on the area of the principal display panel. Text size shall be determined based on Table 7A.1.
Safety Standard 16 CFR 1263

7B Packaging Markings

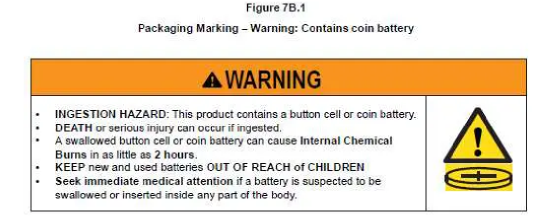

7B.1 Except as allowed in 7B.2 and 7B.3, the principal display panel shall contain the warning label in Figure 7B.1 or Figure 7B.2. The icon in Figure 7B.1 shall be at least 7 mm in width and 9 mm in height.
The icon in Figure 7B.2 shall be at least 8 mm (0.31 in) in diameter. The text in the warning label shall be as shown in Figure 7B.1 or Figure 7B.2. When on a printed label using more than one color the markingmust use colors as shown in Figure 7B.1 or Figure 7B.2..
Safety Standard 16 CFR 1263

7B.2 Consumer products that are not contained in packaging shall have the warning label in Figure 7B.1or Figure 7B.2 affixed to the consumer product with a hang tag or a sticker label.
7B.3 When space on the principal display panel of the consumer product packaging does not permit thewarning label in Figure 7B.1 or Figure 7B.2, the principal display panel shall include the warning in Figure7B.3 in a conspicuous location. The icon shall be at least 7 mm in width and 9 mm in height. Theremaining warning statements must be on a secondary display panel, as shown in Figure 7B.4. The text in the warning labels shall be as shown in Figure 7B.3 and Figure 7B.4. When on a printed label using more than one color the marking must use colors as shown in Figure 7B.3 and Figure 7B.4..
Safety Standard 16 CFR 1263
