| Categories | Precision CNC Machining Center |
|---|---|
| Brand Name: | Bodsee |
| Model Number: | CNC-950GM |
| Place of Origin: | China |
| MOQ: | 1SET |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 30set/month |
| Delivery Time: | Negotiation |
| Packaging Details: | Wooden Package |
| Y axis travel: | 500mm |
| Y rapid feed: | 36m/min |
| Work table size: | 1500x420mm |
| Positioning accuracy: | 0.01mm |
| Feed motor connection form: | Direct Connection |
| Taper of spindle hole: | BT40 |

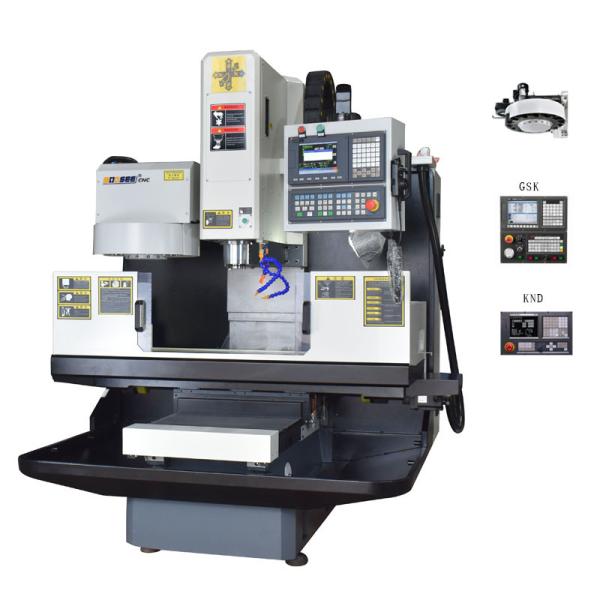

3 Axis 4 Axis 5 Axis Fully Automatic Precision CNC Machining Center VMC Machine
Product Description:
CNC-950GM CNC Vertical Machining Center is suitable for automobile, motorcycle, aerospace, military, instrument, meter, electronics, mold and other industries.
1. Automatic intermittent lubrication.
2. 12/24T arm-type ATC.
3. It can install 4th axis and install 5th axis.
Product Specification:
| Model No. | CNC-950GM | |
| X axis travel | 900mm | |
| Y axis travel | 500mm | |
| Z axis travel | 500mm | |
| Distance from spindle nose to the work table | 120-620mm | |
| Distance from spindle center to column guideway | 580mm | |
| X rapid feed | 36m/min | |
| Y rapid feed | 36m/min | |
| Z rapid feed | 24m/min | |
| Cutting rapid feed | 8000mm/min | |
| The width of the triaxial linear guide | 35mm | |
| The number of the slider in the X axis | 6 pieces | |
| The number of the slider in the Y axis | 4 pieces | |
| The number of the slider in the Z axis | 4 pieces | |
| Triaxial screw size | 40/12mm | |
| Work table size | 1500x420mm | |
| The maximum load capacity | 400KG | |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm | |
| Spacing | 90mm | |
| Positioning accuracy | 0.01mm | |
| Repeat positioning accuracy | 0.008mm | |
| Spindle speed range | 20-8000rpm/min | |
| Feed axis motor power | 1.8/1.8/2.5KW | |
| Feed motor connection form | Direct Connection | |
| Taper of spindle hole | BT40 | |
| The spindle of output power | 5.5KW | |
| Cooling box form | Independent | |
| Tool Changer | Carousel tool changer | |
| Tool Capacity | 12pieces | |
| Dimension of machine tool | 1950/1700/2300mm | |
| Weight of machine | 2250KG | |

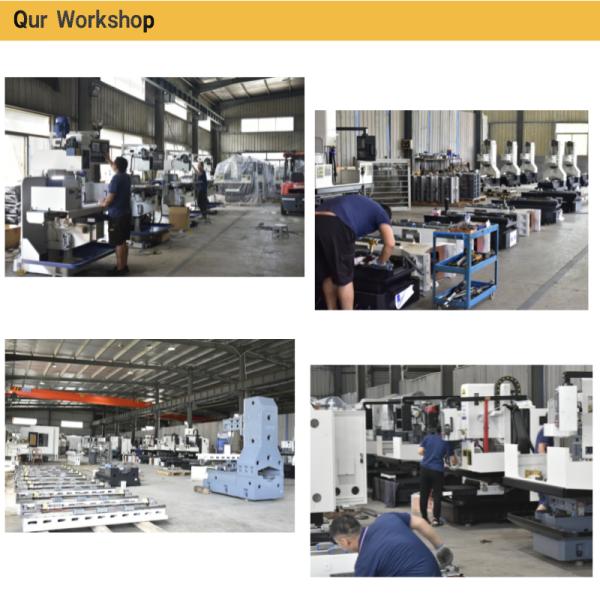

Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Workpiece Samples:
Our Exhibition:
FAQ:
1. Are you a manufacturer or a trader?
The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
5.OEM Service
We accept purchase orders with customers' brand or trade mark.
|
