| Categories | Hydraulic Table Lifter |
|---|---|
| Certification: | ISO,CE,EGS |
| Brand Name: | AIDA |
| Model Number: | ASPS150 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | pallet packing for export |
| Delivery Time: | 5-20 work days as per order volume |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 500 Units/Month |
| Model NO.: | ASPS150 |
| Driven Type: | Hydraulic |
| Running Mode: | Moving |
| Feature: | Insulating |
| Net Weight: | 64 |
| Foot Pedal Cycles to Max Height: | <=30 |
| Total Height: | 920 |
| Tyre Size: | 100 |
| Min.Height of Table: | 302mm |
| Carton Size: | 860*485*300 |
| Specification: | 64kg |
| Table Size: | 700*450*35mm |
| Trademark: | AIDA |
| Lifting Height: | 798mm |
| Max.Lift Height: | 1100mm |
| Load Capacity: | 150/300/500/800kg |
| HS Code: | 84279000 |
| Origin: | China |
| After-sales Service: | Support |
| Warranty: | Support |
| Lift Mechanism: | Scissor Lift |
| Application: | Workshop Crane, Warehouse Crane |
| Carrying Capacity: | Middle-Level |
| Customization: | Available | Customized Request |
| Moves: | Moving |
| Company Info. |
| AIDA FORKLIFT EQUIPMENT CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

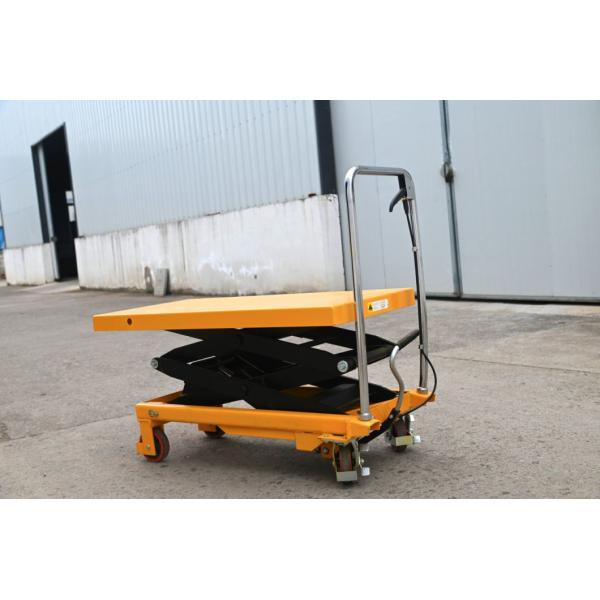

Lifting Equipment Hydraulic Lift Table for Work Platform 150kg
1) Reliable hydraulic performance ensures long service life;
2) With overload protection function;
3) The ascending and descending control device is easy to operate
without turning the fixed handle;
4) The rear wheel is equipped with a wheel guard bracket and a brake,
which can stop the wheel rotation in an emergency.
5) The interval between the moving parts meets the CE requirements to
prevent fingers from being pinched and ensure safety;
| Model | ASPS150 | ASPS350 | ASPS500 | ASPS800 | |
| Load capacity | kg | 150 | 350 | 500 | 800 |
| Max.lift height | mm | 1100 | 1300 | 1550 | 1500 |
| Min.height of table | mm | 302 | 350 | 410 | 475 |
| Lifting height | mm | 798 | 950 | 1025 | 1025 |
| Table size | mm | 700*450*35 | 910*500*52 | 1010*520*60 | 1220*610*60 |
| Foot pedal cycles to max height | <=30 | <=60 | <=70 | <=70 | |
| Net weight | kg | 64 | 105 | `172 | 172 |
| Carton size | mm | 860*485*300 | 985*519*350 | 1370*645*470 | 1370*645*470 |
| Total height | mm | 920 | 970 | 969 | 961 |
| Tyre size | mm | φ100 | φ127 | φ127 | φ150 |
AIDA is a cutting-edge enterprise that combines research and development, production, and service. We are dedicated to providing professional material handling equipment and flexible intralogistics solutions for various scenarios.
Our product range includes a series of electric pallet trucks, electric stackers, hand pallet trucks, semi-electric stackers, reach stackers, and other material handling equipment. These products find wide applications in logistics and warehousing, retail and wholesale, medicine, food, chemical, electronics, machinery, automobile, and other industries.
At AIDA, we have implemented a rigorous quality assurance system and obtained ISO9001, ISO14001, SGS, and CE certifications. As a national high-tech enterprise, we have secured over 40 national patents and received accolades such as the "Small Giant Enterprise in Hunan Province," "Pilot Enterprise for Advanced Manufacturing and Modern Service Integration in Hunan Province," "Demonstration Enterprise of Intelligent Manufacturing in Changsha City," and "Hunan Enterprise Technology Center."
Our design philosophy at AIDA revolves around "energy saving, environmental protection, high efficiency, and intelligence." We are committed to becoming a leading expert in smart digital intralogistics solutions, focusing on delivering products that embody these principles.
|
