| Categories | Low Carbon Mild Steel Hex Metal |
|---|---|
| Brand Name: | HESLY |
| Model Number: | H-GJ22550 |
| Certification: | ISO9001, SGS |
| Place of Origin: | HESLY Group, CHINA |
| MOQ: | 10 SQM |
| Price: | USD 18.50 to USD72.00/SQM |
| Payment Terms: | T/T, L/C at sight, D/P |
| Supply Ability: | 500SQM / day |
| Delivery Time: | 12 working days/20'GP |
| Packaging Details: | Steel Pallet |
| Material: | Low Carbon Mild Steel |
| Technial: | Perforated & Riveting |
| Hole: | Hexagonal 50X50mm etc |
| Height: | 10mm/15mm/25mm/30mm/50mm |
| Strip THK: | 1.0/1.2/1.5/2.0mm etc |
| Panel Size: | 1X1m, 914X3050mm |

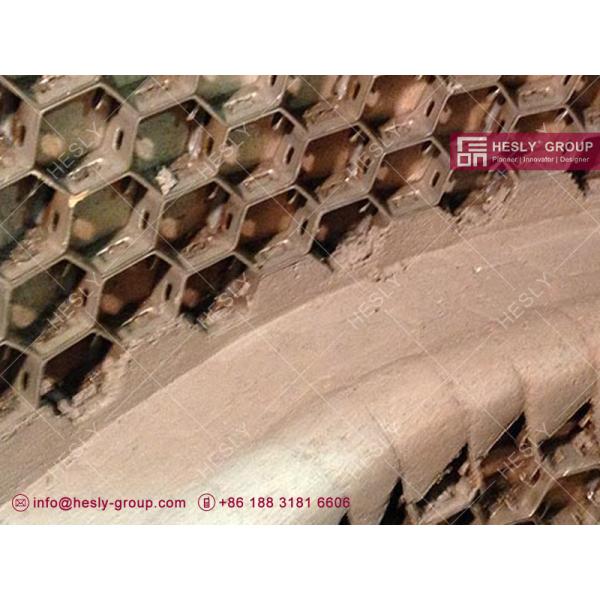

Hexmetal is a hexagon shaped grid used in the installation of thick linings. Hexmetal supports the lining and prevents slumps. It retards erosion, corrosion, cracking, blistering, pitting or collapse thereby lengthening the life of the lining. Hexmetal is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the steel shell and the armored surface. The slots permit passage of the castable which forms a key between adjacent cells. Available in standard and lance pattern.
 |  |
| Standard Bonding Hole Pattern | Lance Pattern |
FOR REFRACTORIES
The flexibility, high strength and erosion resistant
characteristics of Hexmesh make it an excellent choice for
refractory linings in furnaces, reactors, cyclones, ducts and
flues.
FOR FLOORS
Hexmesh provides long term protection for armor applications inside
industrial floors. Specifically, loading docks, ramps, high traffic
aisles for forklifts and trucks. Hot floors for foundries, forge
shops and steel mills. Refuse and recycle disposal plant floors and
almost anywhere floors are subject to severe impact and rolling
loads. All will benefit with Hexmesh
Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.
The flexibility of HESLY’s Hex Mesh allows it to be rolled, and easily conforms to circular shapes. It
is recommended for use when placement is spaced from the steel
shell to allow room for thick insulation between the metal shell
and the armoured surface.
Typical Service Temperature of Different Material for Hexmesh:
| Anchorage Material | Chemical Composition | Typical Service Temperature | ||||||||
| AISI | DIN | C% | Si% | Mn% | P% | S% | Cr% | Ni% | others | |
| 304 | 1.4301 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.45 | ≤0.30 | 18.0—20.0 | 8.0—10.0 | N | 800℃ |
| 316 | 1.4401/1.4436 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 16.0—18.0 | 10.0—14.0 | N:Mo | 800℃ |
| 321 | 1.4541 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 17.0—19.0 | 9.0—12.0 | Ti | 800℃ |
| 310S | 1.4845 | ≤0.08 | ≤1.50 | ≤2.00 | ≤0.45 | ≤0.30 | 24.0—26.0 | 19.0—22.0 | — | 1150℃ |
| Inconel 601 | 2.4851 | ≤0.10 | ≤0.50 | ≤1.00 | — | ≤0.15 | 21.0—25.0 | 58.0—63.0 | Al:Cu | 1200℃ |
| Inconel 800 | 1.4876 | ≤0.10 | ≤1.00 | ≤1.50 | ≤0.45 | ≤0.15 | 19.0—23.0 | 30.0—35.0 | Al:Ti | 1200℃ |
| 410S | 1.4001 | ≤0.08 | ≤1.00 | ≤1.00 | ≤0.40 | ≤0.30 | 11.5—13.5 | ≤0.60 | — | 750℃ |
| CARBON STEEL | VARIOUS | 550℃ | ||||||||
| HESLY Hexmesh ordinary specifications | |||||
| ITEM | SPECS | B | A | AF | |
| 1 | 1.2 X 10 X 50mm | 1.2mm | 10mm | 40mm | |
| 2 | 1.2 X 15 X 50mm | 1.2mm | 15mm | 50mm | |
| 3 | 1.2 X 20 X 50mm | 1.2mm | 20mm | 50mm | |
| 4 | 1.5 X 10 X 50mm | 1.5mm | 10mm | 50mm | |
| 5 | 1.5 X 15 X 50mm | 1.5mm | 15mm | 50mm | |
| 6 | 1.5 X 20 X 50mm | 1.5mm | 20mm | 50mm | |
| 7 | 1.8 X 15 X 50mm | 1.8mm | 15mm | 50mm | |
| 8 | 1.8 X 20 X 50mm | 1.8mm | 20mm | 50mm | |
| 9 | 1.8 X 25 X 50mm | 1.8mm | 25mm | 50mm | |
| 10 | 2.0 X 15 X 50mm | 2.0mm | 15mm | 50mm | |
| 11 | 2.0 X 20 X 50mm | 2.0mm | 20mm | 50mm | |
| 12 | 2.0 X 25 X 50mm | 2.0mm | 25mm | 50mm | |
| 13 | 2.0 X 30 X 50mm | 2.0mm | 30mm | 50mm | |
| 14 | 2.0 X 30 X 80mm | 2.0mm | 30mm | 80mm | |
| 15 | 2.0 X 20 X 100mm | 2.0mm | 20mm | 100mm | |
| Remark | A/F | Min: 40mm Max: 100mm | |||
| MATERIAL | A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S | ||||
 |  |
